Sensor Module

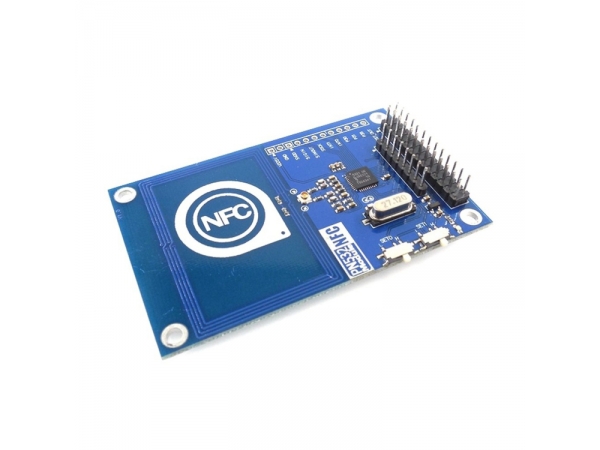

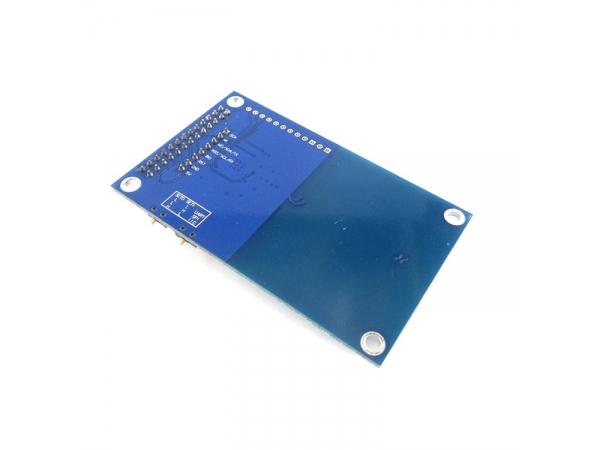

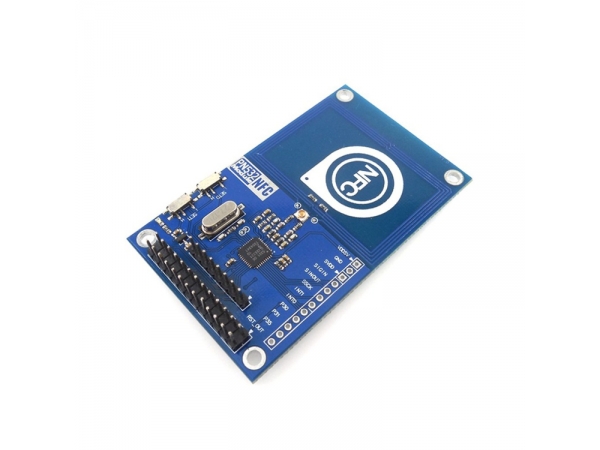

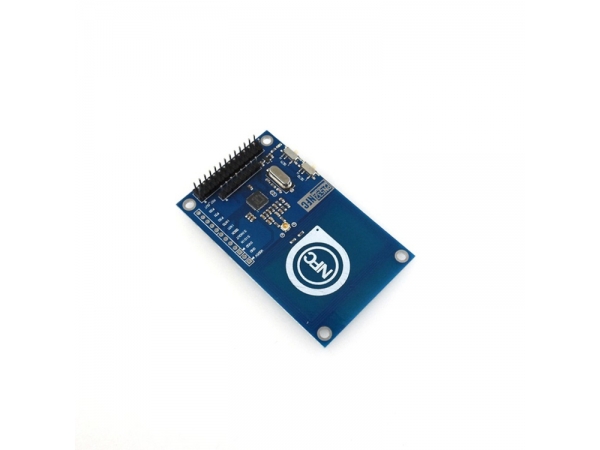

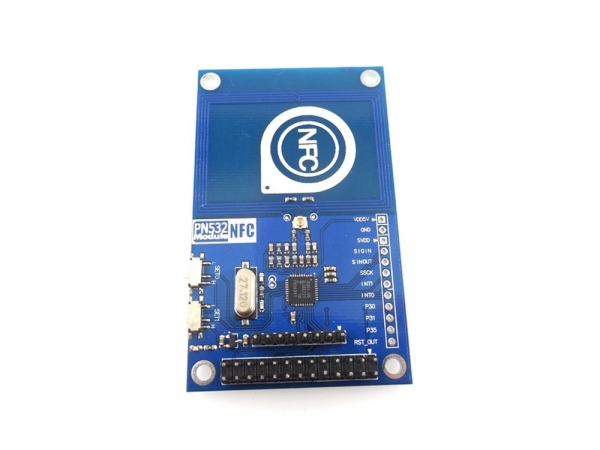

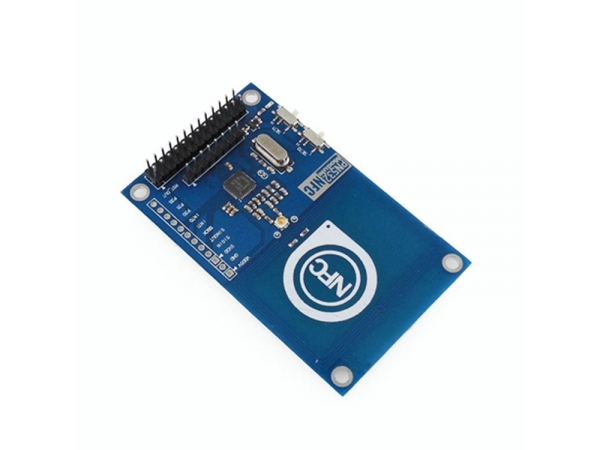

PN532 NFC Precise RFID IC Card Reader Module Shield V3 13.56MHz SPI IIC I2C UART 3.3V NFC Board For Arduino UNO R3 Raspberry PI

PN532 NFC Precise RFID IC Card Reader Module Shield V3 13.56MHz SPI IIC I2C UART 3.3V NFC Board For Arduino UNO R3 Raspberry PI
Features:
The longest effective communication distance is 5 cm.
Support SPI, IIC, UART interface switch.
 Non contact communication for 13.56M.
Compatible with ISO14443 TYPE A and B standards.
  • PN532 NFC Precise RFID IC Card Reader Module Shield V3 13.56MHz SPI IIC I2C UART 3.3V NFC Board For Arduino UNO R3 Raspberry PI
    Features:
    The longest effective communication distance is 5 cm.
    Support SPI, IIC, UART interface switch.
     Non contact communication for 13.56M.
    Compatible with ISO14443 TYPE A and B standards.
    Specification:
    Material: metal
    Color: blue
    Model: HW-230
    Item Size: 79*49*5mm
    Chip: PN532
    Working voltage: 3.3V
    Supply voltage: 3.3 ~ 5.5V
    Maximum supply current: 150 mAh
    Working current (standby mode): 100 mAh
    Working current (write mode): 120 mAh
    Working current (read mode): 120 mAh
    Pointer: PWR
    Interface: Raspberry Pi 20pins interface standard SPI interface.

    Package Included:
    1 * NFC Reader Card Module
  • Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
