Sensor Module

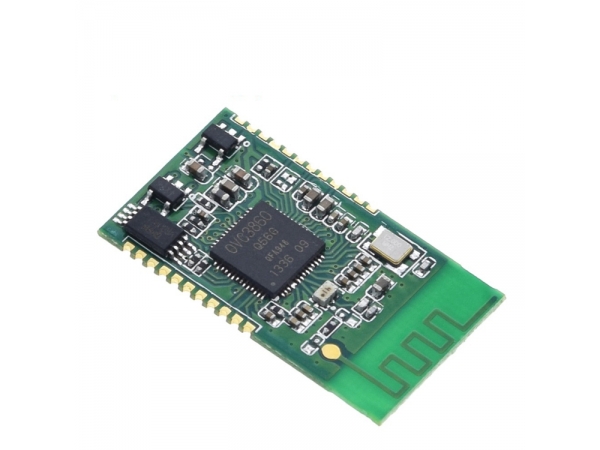

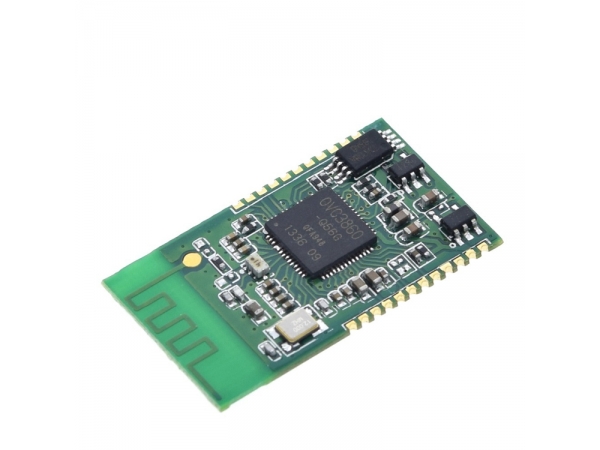

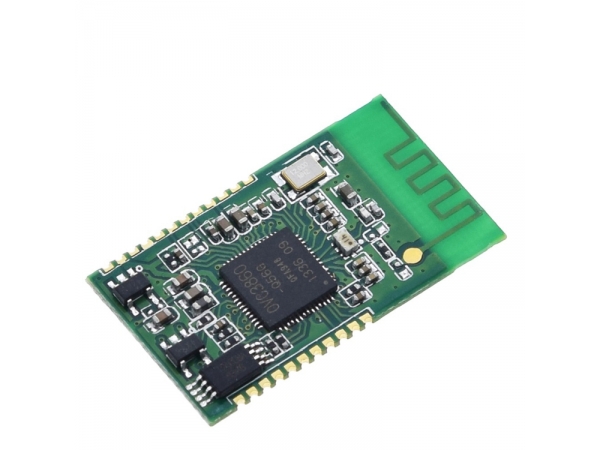

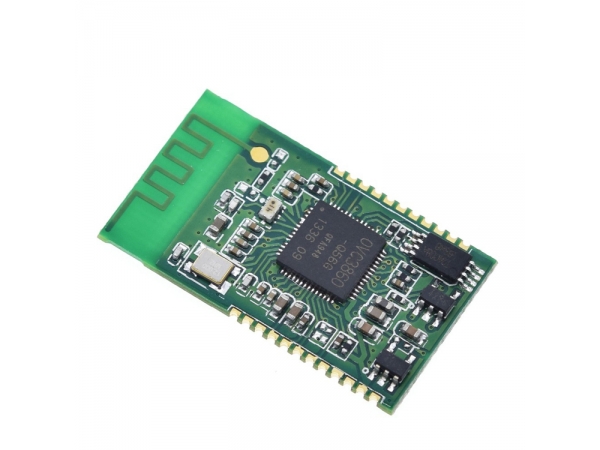

New XS3868 Bluetooth Stereo Audio Module OVC3860 Chip Supports A2DP AVRCP

New XS3868 Bluetooth Stereo Audio Module OVC3860 Chip Supports A2DP AVRCP
roduct Details:
Bluetooth Stereo Module
Condition: New
Chip: ovc3860
Bluetooth: version2.0
Frequency: 2.402-2.48-Ghz
Max transmit power:Class 2 4dBm(at antenna pad)
Receive sensitivity: better than -82dBm
Range: about 10 meters
Data rates Up to 3Mbps(over the air)
UART DATA Transfer rate: 115200bps
UART: no flow control support
Microphone: mono microphone input with bias
Profiles: A2DP-sink only
AVRCP-Controller only
Supply voltage: supply:DC 3.0-3.6V
  • New XS3868 Bluetooth Stereo Audio Module OVC3860 Chip Supports A2DP AVRCP
    roduct Details:
    Bluetooth Stereo Module
    Condition: New
    Chip: ovc3860
    Bluetooth: version2.0
    Frequency: 2.402-2.48-Ghz
    Max transmit power:Class 2 4dBm(at antenna pad)
    Receive sensitivity: better than -82dBm
    Range: about 10 meters
    Data rates Up to 3Mbps(over the air)
    UART DATA Transfer rate: 115200bps
    UART: no flow control support
    Microphone: mono microphone input with bias
    Profiles: A2DP-sink only
    AVRCP-Controller only
    Supply voltage: supply:DC 3.0-3.6V
    IO:1.7V-3.6V
    Current consumption: operational-less than 25ma(active)
    Idle(sleep)<>
    External antenna: Connection via S M T pad

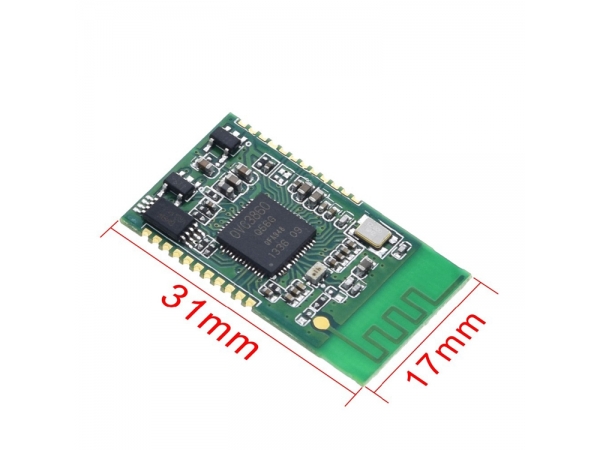

    Dimensions: 30 x 17 x 3.4mm
    6 Button to input: boot key, matching key, volume up, volume down, move next, move previous
    2 indicator light to indicate different work condition
    Color : show as pictures
    PLS NOTE that due to lighting effects, monitor‘s brightness / contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item!
