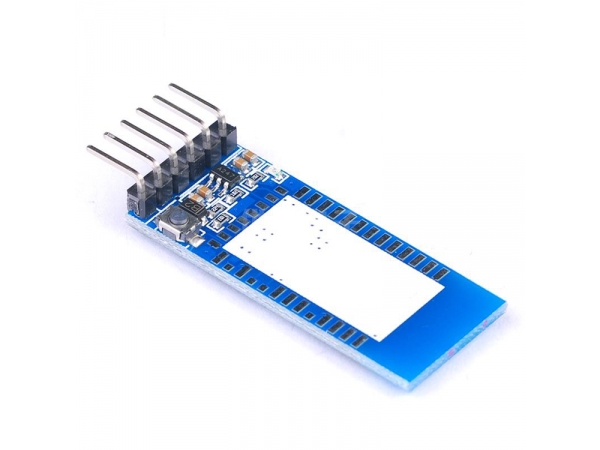

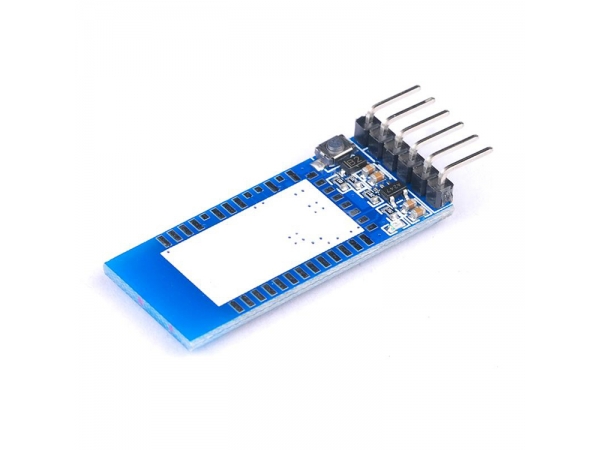

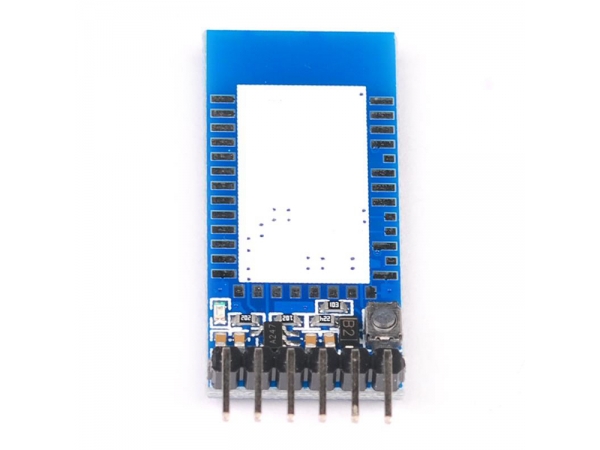

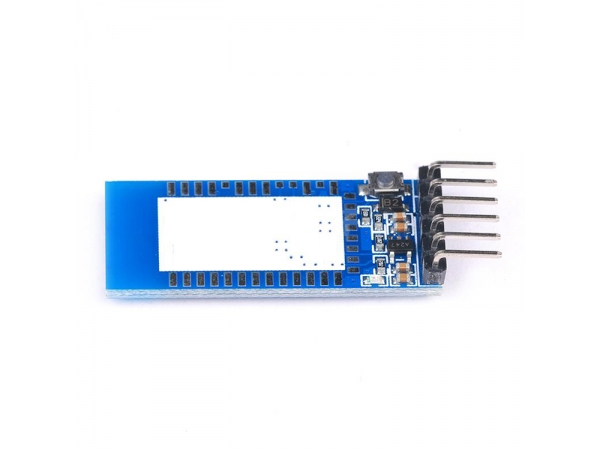

Bluetooth module chassis Bluetooth serial backplane low power consumption power anti-reverse for HC05/06/07 (HC-05 HC-06 HC-07)

Bluetooth module chassis Bluetooth serial backplane low power consumption power anti-reverse for HC05/06/07 (HC-05 HC-06 HC-07)
The product does not function with any Bluetooth, Bluetooth module must bring their own;

First, the module parameters:

1.PCB Dimensions: 37.3mm * 15.5mm

2. Weight: 2g

3. Input voltage: DC3.6V - 6V, 7V ban over

4. Power anti-reverse, reverse module does not work

Bluetooth module chassis Bluetooth serial backplane low power consumption power anti-reverse for HC05/06/07 (HC-05 HC-06 HC-07)
The product does not function with any Bluetooth, Bluetooth module must bring their own;

First, the module parameters:

1.PCB Dimensions: 37.3mm * 15.5mm

2. Weight: 2g

3. Input voltage: DC3.6V - 6V, 7V ban over

4. Power anti-reverse, reverse module does not work

5. Common various models can be installed Bluetooth module, such as HC05 / 06/07 / BC04 or other compatible Bluetooth module pin definitions

6. With Clear button, you can have the key support pin module (eg HC05 / 06/07 host)

7. leads to six feet: VCC / GND / TXD / RXD / STATE / EN

8. Set the EN enable pin, floating or tied high, the module is working properly; grounding module power when turned off (after the closure of the current <20uA) to reduce power consumption

9. batch chip production factory, stable and reliable quality

Note: The default setting when connecting BC04 for hardware and as a slave, and if necessary modify the software settings for the fly line from 3.3V to PIO4

Tips: Click schematics used to provide welding pins, not less than the pin welding
