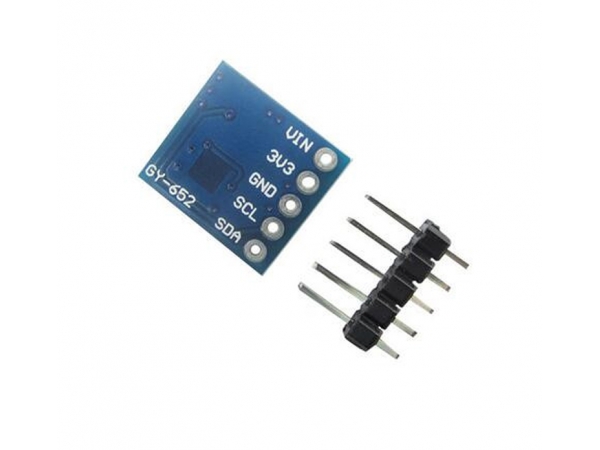

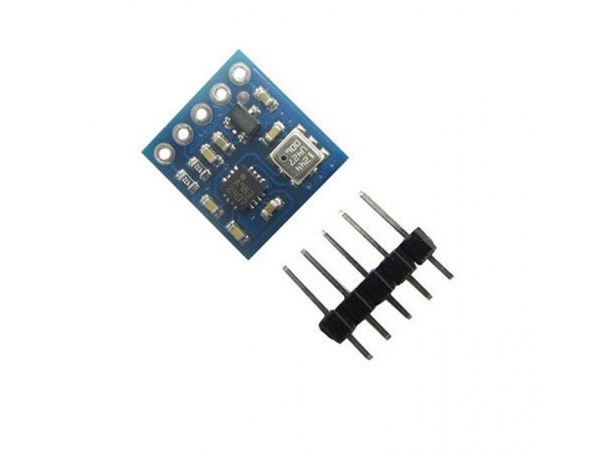

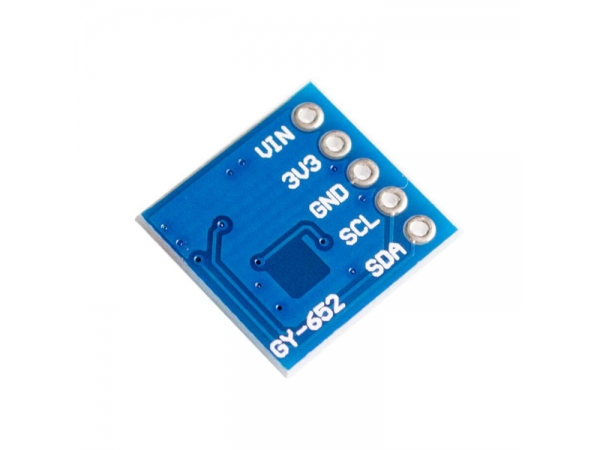

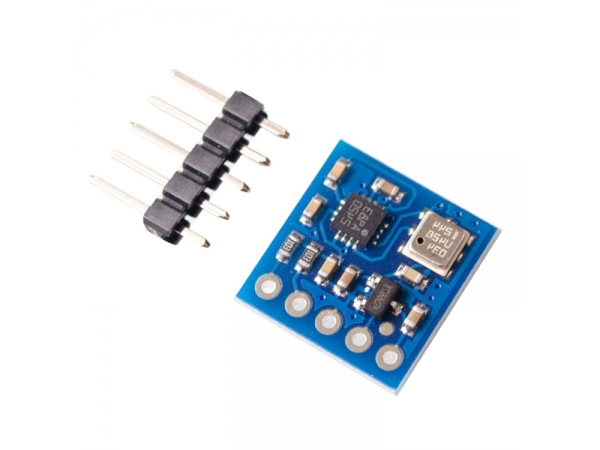

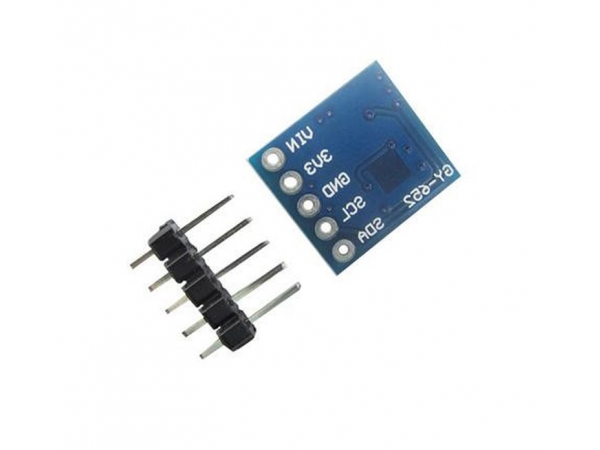

GY-652 Sensor module
Pneumatic + magnetic field sensor
GY652:
Descriptions:
- Name: electronic compass atmospheric pressure module (three-axis magnetic field + pressure)
- Model: GY-652
- The use of chip: HMC5983 + BMP180
- Power supply :3-5v (internal low dropout regulator)
- Communication modes: standard IIC communication protocol)
- Magnetic field range: ± 0.88 to ± 8.1 gauss
- Pressure Range :300-1100hPa
- Chip 12bit AD converter, 16-bit data output
- Machine welding process to ensure quality
- Size: 13mm * 14mm (standard pitch 2.54mm)
