Sensor Module

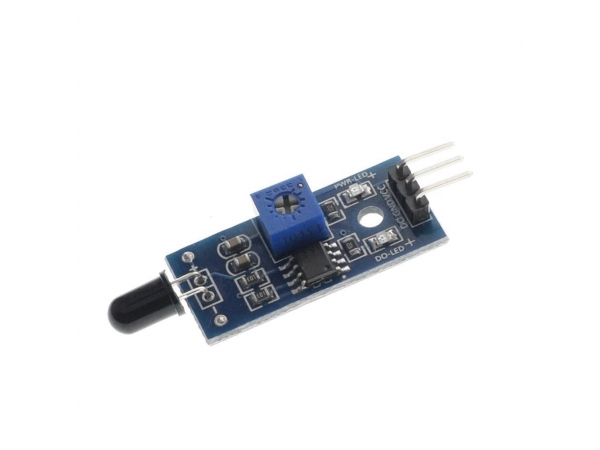

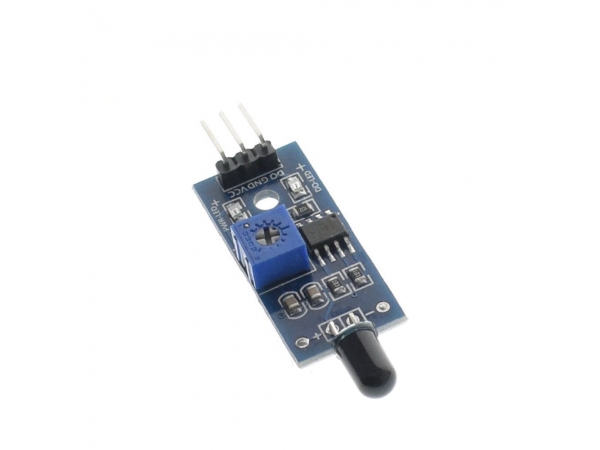

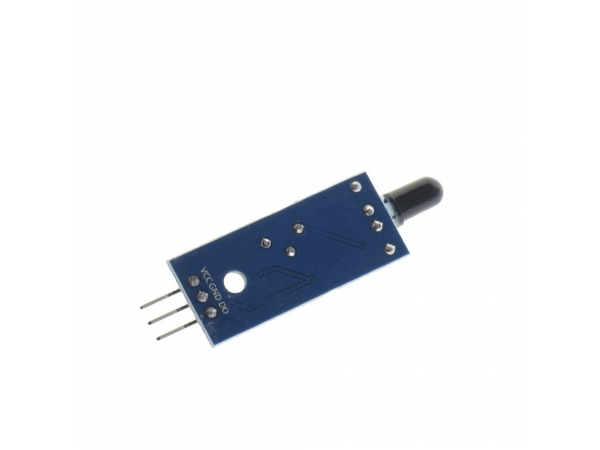

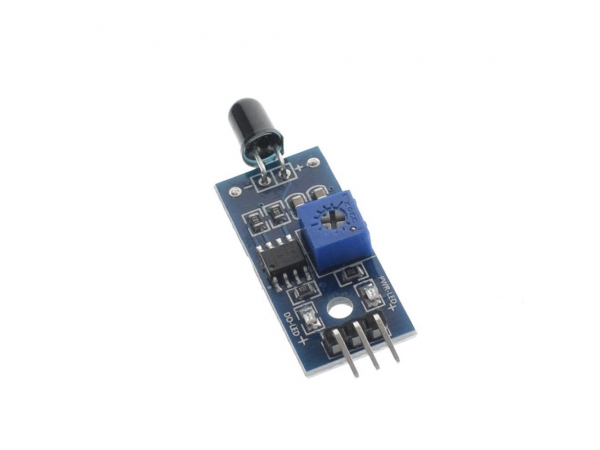

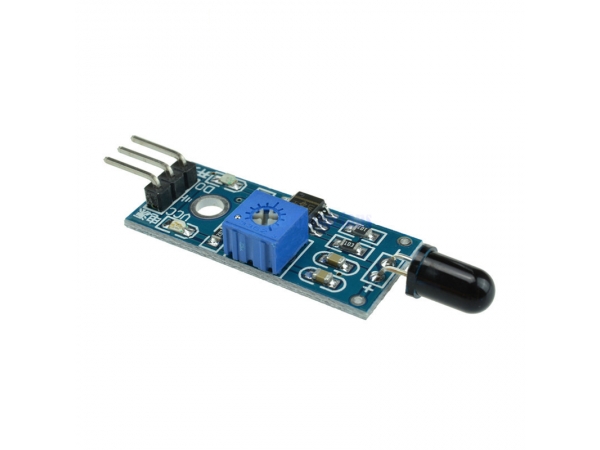

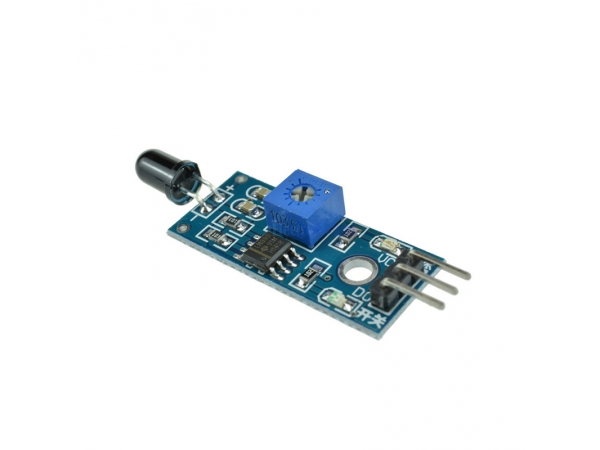

Flame detection Sensor IR Infrared receiver control module 760nm-1100nm

Flame detection Sensor IR Infrared receiver control module 760nm-1100nm
3Pin Flame detection Sensor IR Infrared receiver control module 760nm-1100nm
Infrared 3 Wire Flame Detection Sensor Module IR Flame Sensor Module Detector Smartsense For Arduino diy electronic
3.3V-5V LM393 Flame Detection Sensor 3Pin IR Infrared Receiver Control Module 760nm-1100nm
  • Flame detection Sensor IR Infrared receiver control module 760nm-1100nm
    3Pin Flame detection Sensor IR Infrared receiver control module 760nm-1100nm
    Infrared 3 Wire Flame Detection Sensor Module IR Flame Sensor Module Detector Smartsense For Arduino diy electronic
    3.3V-5V LM393 Flame Detection Sensor 3Pin IR Infrared Receiver Control Module 760nm-1100nm
    Module Features:
    1. Can detect the flame or the wavelength at 760 nm to 1100 nm range of the light source, the test flame lighters distance of 80cm, the larger the flame,
     the greater the distance test.
    2. The detection angle of 60 degrees, the flame spectrum particularly sensitive.
    3. Sensitivity adjustable. (shown in blue digital potentiometer adjustment)
    4. The comparator output signal clean waveform is good, driving ability, than 15mA.
    5. With a precision potentiometer adjustable sensitivity adjustment.
    6. Operating Voltage 3.3V-5V.
    7. The output in the form: DO digital switching outputs (0 and 1) and AO analog voltage output.
    8. A fixed bolt holes for easy installation.
    9. Small plates PCB size: 3.2cmx1.4cm.
    10.Using a wide voltage LM393 comparator.

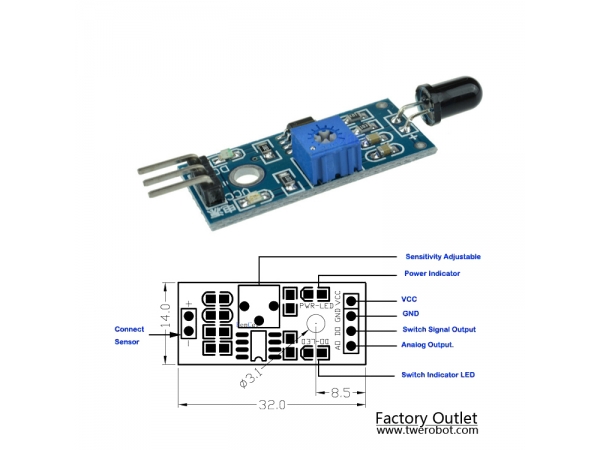

    Wiring Instructions:
    1. VCC: VCC3.3-5V.
    2 .GND: GND.
    3. DO: TTL switch signal output.
