Sensor Module

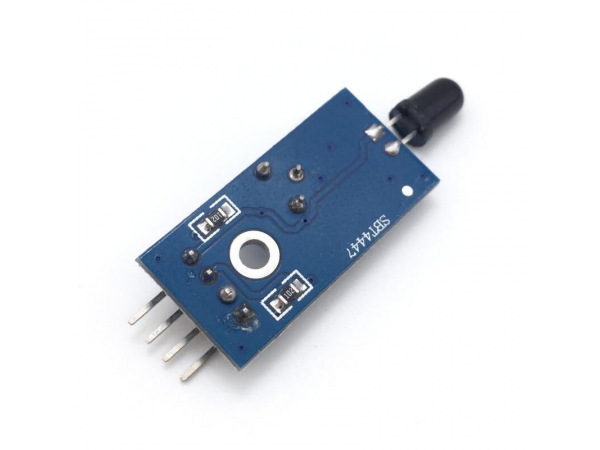

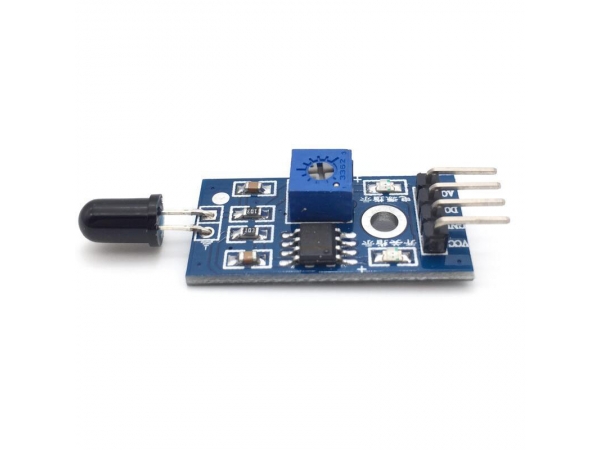

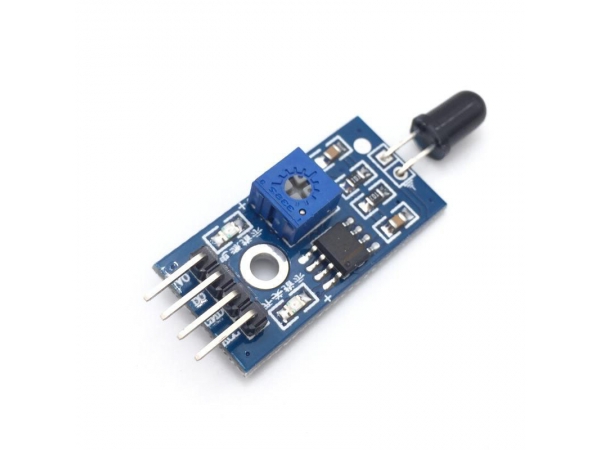

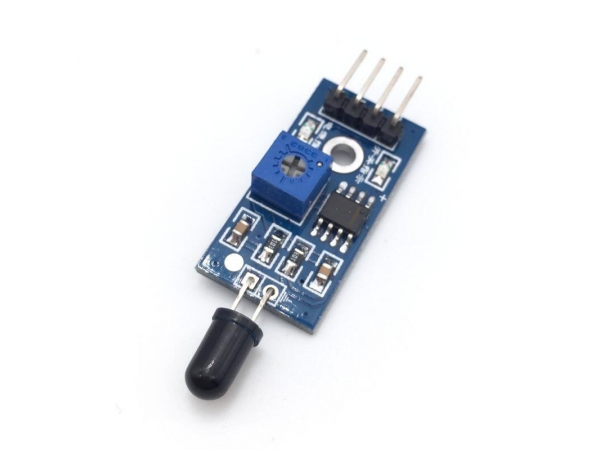

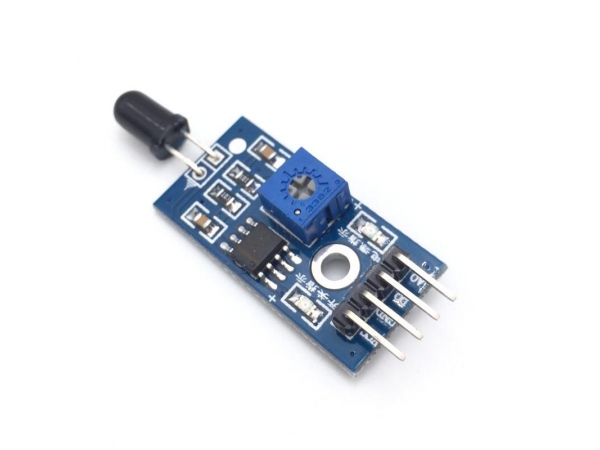

IR Infrared 4 Wire Flame Detection Sensor Module IR Flame Sensor Module Detector Smartsense

IR Infrared 4 Wire Flame Detection Sensor Module IR Flame Sensor Module Detector Smartsense
Flame detection Sensor IR Infrared receiver control module 760nm-1100nm Digital IR Infrared Flame Thermal Temperature  Sensor 4pin
LM393 4 Pin IR Flame Detection Sensor Module Fire Detector Infrared Receiver Module Diy Kit In Stock
IR Infrared 4 Wire Flame Detection Sensor Module IR Flame Sensor Module Detector Smartsense diy electronic

  • IR Infrared 4 Wire Flame Detection Sensor Module IR Flame Sensor Module Detector Smartsense
    Flame detection Sensor IR Infrared receiver control module 760nm-1100nm Digital IR Infrared Flame Thermal Temperature  Sensor 4pin
    LM393 4 Pin IR Flame Detection Sensor Module Fire Detector Infrared Receiver Module Diy Kit In Stock
    IR Infrared 4 Wire Flame Detection Sensor Module IR Flame Sensor Module Detector Smartsense diy electronic
    Module Features:
    1. Can detect the flame or the wavelength at 760 nm to 1100 nm range of the light source, the test flame lighters distance of 80cm, the larger the flame,
     the greater the distance test.
    2. The detection angle of 60 degrees, the flame spectrum particularly sensitive.
    3. Sensitivity adjustable. (shown in blue digital potentiometer adjustment)
    4. The comparator output signal clean waveform is good, driving ability, than 15mA.
    5. With a precision potentiometer adjustable sensitivity adjustment.
    6. Operating Voltage 3.3V-5V.
    7. The output in the form: DO digital switching outputs (0 and 1) and AO analog voltage output.
    8. A fixed bolt holes for easy installation.
    9. Small plates PCB size: 3.2cmx1.4cm.
    10.Using a wide voltage LM393 comparator.
    Wiring Instructions:
    1. VCC: VCC3.3-5V.
    2 .GND: GND.
    3. DO: TTL switch signal output.
