Sensor Module

< >

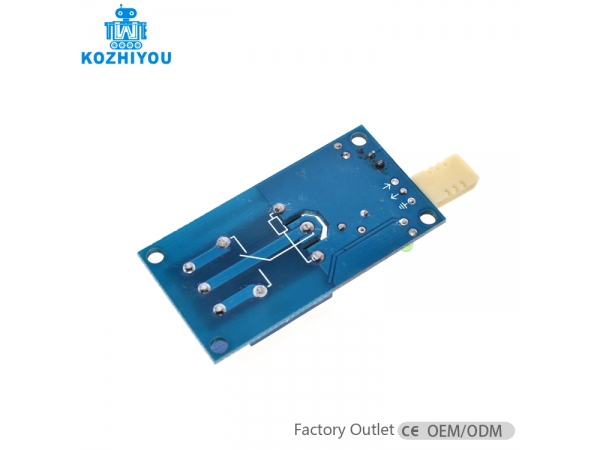

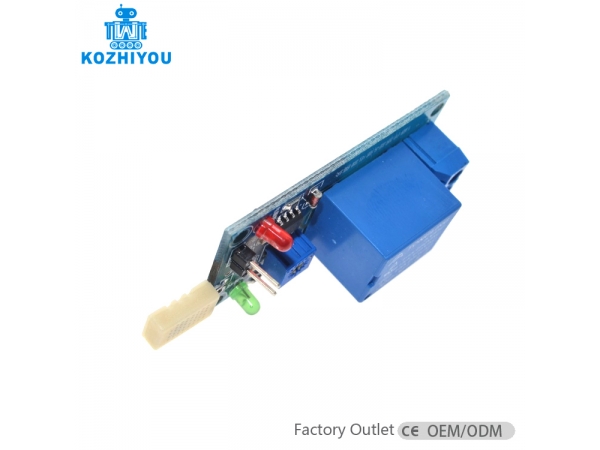

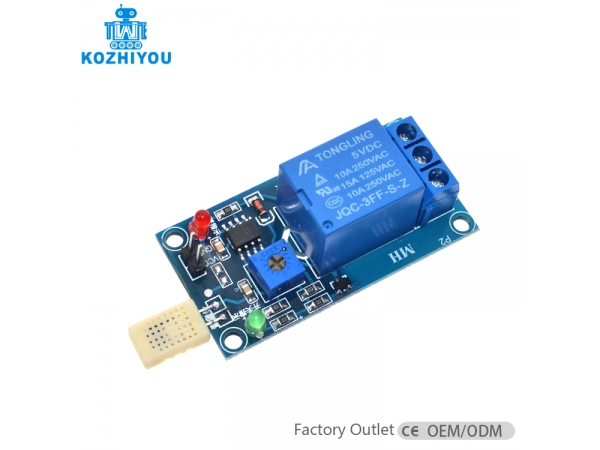

5V/12V Humidity Controller Sensor Relay Module

Introduction

Humidity-sensitive sensor most sensitive to humidity, generally used for detection of humidity of the surrounding environment;

Module in the ambient humidity exceeds the set threshold value, the relay sucks and shuts, common Terminal and start connecting,
and when relative humidity falls below the specified threshold value, the relay disconnect, common end and closed-end connected;

Common, normally open, normally closed three ports as a dual-control switch, relay coil is electrified, the public side and start conducting,
when there was no electricity, the common end and closed-end pass;

5V/12V Humidity Controller Sensor Relay Module

Introduction

Humidity-sensitive sensor most sensitive to humidity, generally used for detection of humidity of the surrounding environment;

Module in the ambient humidity exceeds the set threshold value, the relay sucks and shuts, common Terminal and start connecting,
and when relative humidity falls below the specified threshold value, the relay disconnect, common end and closed-end connected;

Common, normally open, normally closed three ports as a dual-control switch, relay coil is electrified, the public side and start conducting,
when there was no electricity, the common end and closed-end pass;

Features

The use of high quality HR202 humidity sensor;

The comparator output direct drive relays, 220V AC, or other device;

Distribution adjusting temperature detection threshold

Sensor interface can be mounted pin, plus humidity sensor with wire;

Circuit board dimensions are: 50x26mm, 19mm, with 4 3mm bolt holes for easy installationElectrical

Parameters

Power supply voltage: 5V/12V DC

Current: more than 150mA

Maximum load: 250V 10A DC or 30V 10A, is less than the power you can use

Shipping List

Humidity Sensor Relay module with humidity resistance: 1pcs
