Sensor Module

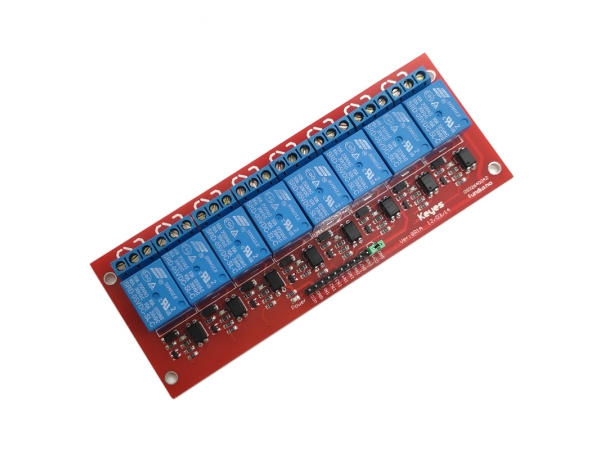

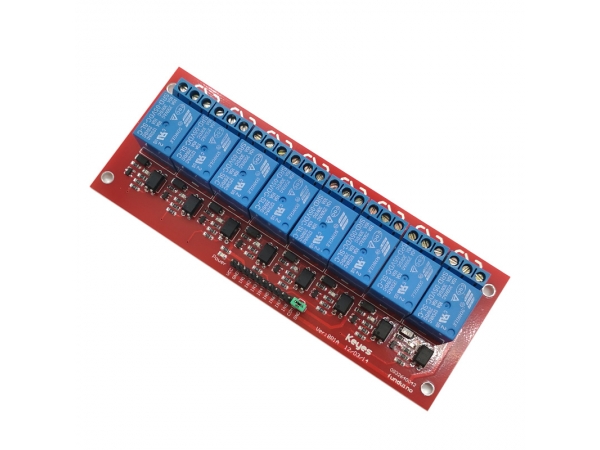

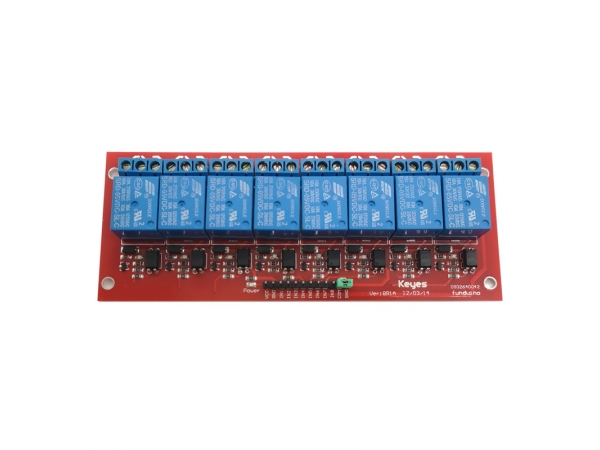

8 Channel 5V Relay Module with Optocoupler Support High and Low Level Trigger

8 Channel 5V Relay Module with Optocoupler Support High and Low Level Trigger
Product description
AC voltage maximum 250V, AC current maximum 10A, DC voltage maximum 30V, DC current maximum 10A;
Using triode drive, strong driving ability;
Operating voltage 5V
Bolt holes are fixed to facilitate installation
PCB size: 13.6cm*5.1cm*1.8cm?
Power indicator (green), eight way relay status indicator (red)
  • 8 Channel 5V Relay Module with Optocoupler Support High and Low Level Trigger
    Product description
    AC voltage maximum 250V, AC current maximum 10A, DC voltage maximum 30V, DC current maximum 10A;
    Using triode drive, strong driving ability;
    Operating voltage 5V
    Bolt holes are fixed to facilitate installation
    PCB size: 13.6cm*5.1cm*1.8cm?
    Power indicator (green), eight way relay status indicator (red)

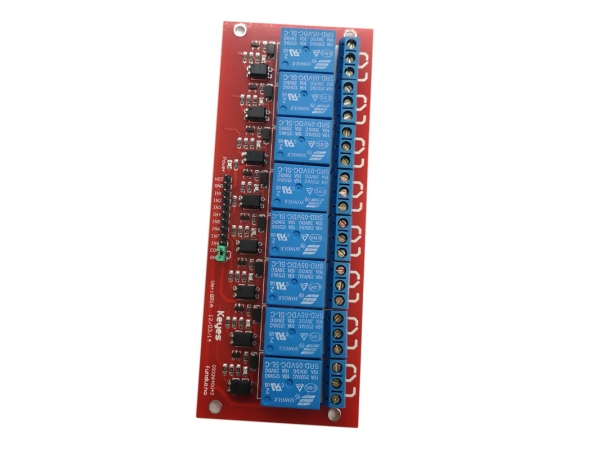

    Module interface description:
    The 3 pin interface on the left"
    1 .JD-VC relay supply voltage
    2 .VCC module supply voltage
    3. GND module ground
    The 10 pin interface on the right:
    1 .VCC module supply voltage 5V
    2 .GND module ground
    3.1N1-1N8 relay control interface, MCU IO port
