Sensor Module

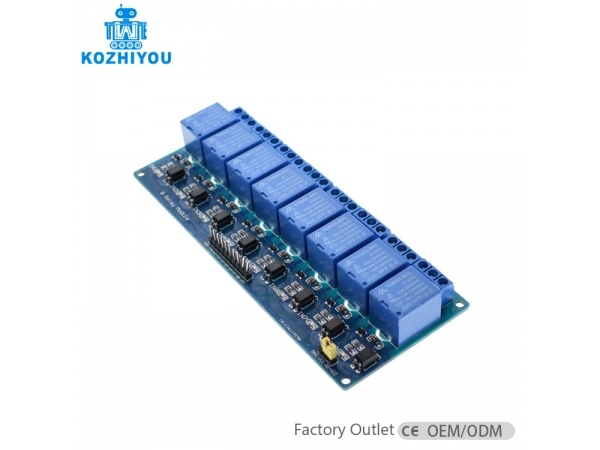

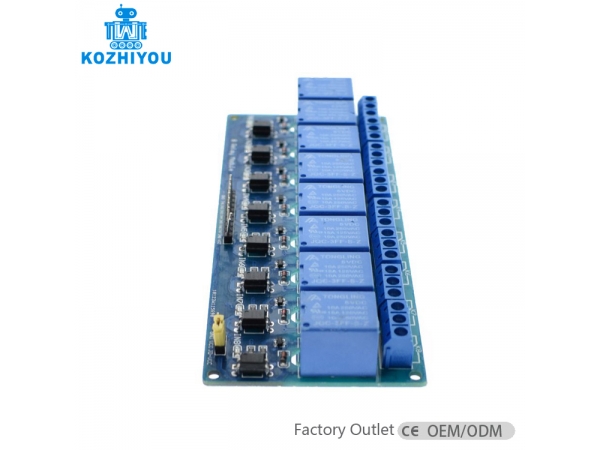

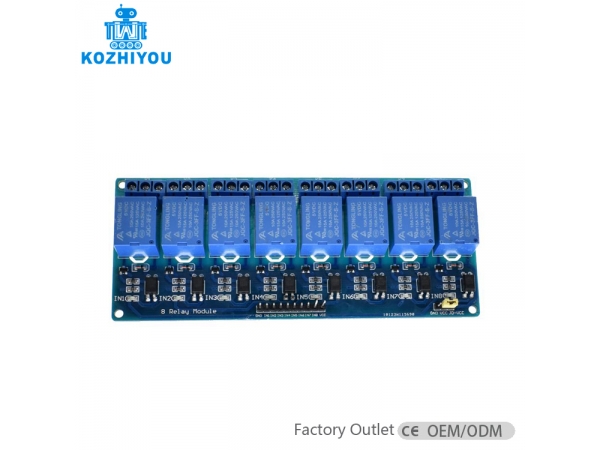

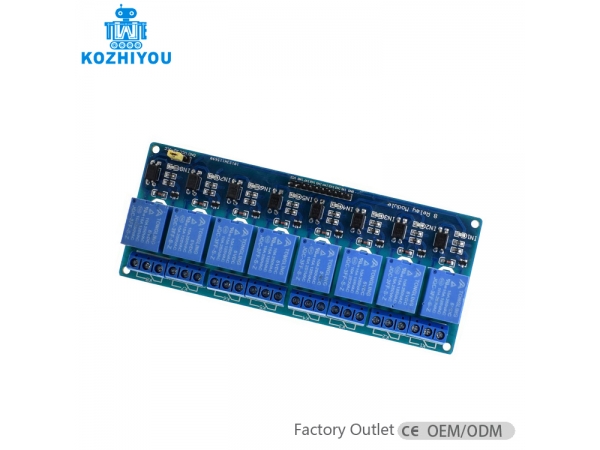

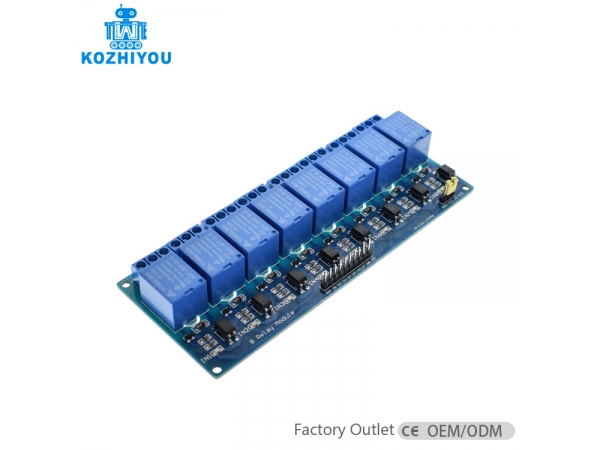

5v 1 8 channel Relay module with optocoupler Low Level Trigger Expansion Board Output for arduinos

5v 1   8 channel Relay module with optocoupler Low Level Trigger Expansion Board Output for arduinos
Features:
This item is a 5V 8-Channel Relay interface board,It can be controlled directly by a wide range of microcontrollers such as for Arduino, AVR, PIC, ARM and so on.
8-Channel Relay interface board.
Each one needs 15-20mA Driver Current.
Equiped with high-current relay : DC30V 10A AC250V 10A.
Each relay has normally open and normally closed contact.
The 8 channels are optically isolated, safe, reliable, anti-interference.
Can be selected by jumper relay and TTL or ground.
With power indicator,8-way road has a status indicator.
With a relay coil to absorb the diode protection.
The circuit board size 140mm X 55mm
Mounting hole size 133mm X 40mm
  • 5v 1   8 channel Relay module with optocoupler Low Level Trigger Expansion Board Output for arduinos
    Features:
    This item is a 5V 8-Channel Relay interface board,It can be controlled directly by a wide range of microcontrollers such as for Arduino, AVR, PIC, ARM and so on.
    8-Channel Relay interface board.
    Each one needs 15-20mA Driver Current.
    Equiped with high-current relay : DC30V 10A AC250V 10A.
    Each relay has normally open and normally closed contact.
    The 8 channels are optically isolated, safe, reliable, anti-interference.
    Can be selected by jumper relay and TTL or ground.
    With power indicator,8-way road has a status indicator.
    With a relay coil to absorb the diode protection.
    The circuit board size 140mm X 55mm
    Mounting hole size 133mm X 40mm
