5V/12V/24V 2 Channel Relay Module Supportthe High and Low Level Trigger

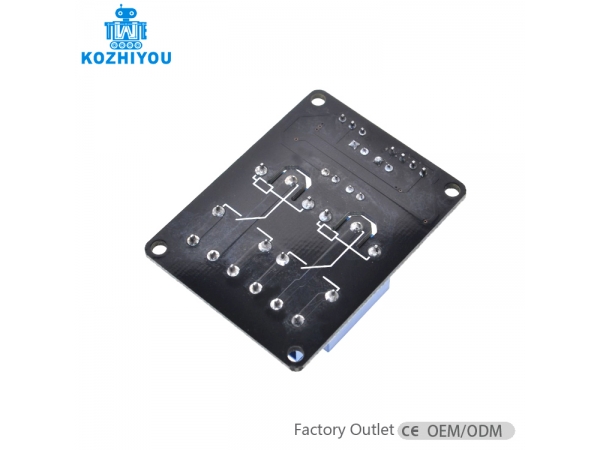

5V/12V/24V 2 Channel Relay Module Supportthe High and Low Level Trigger (Red board)

1. Maximum load:AC 250V/10A, DC30V/10A

2. SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5mA

3. the module voltage 5V

4. each channel module can be set high or low triggered by jumper

5. fault-tolerant design, even if the control line is broken, the relay will not operate

6. power indicator (green), 2 relay state indicator (red)

7. interface design user-friendly, all interfaces are available through the wiring terminal direct connection leads, very convenient

5V/12V/24V 2 Channel Relay Module Supportthe High and Low Level Trigger (Red board)

1. Maximum load:AC 250V/10A, DC30V/10A

2. SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5mA

3. the module voltage 5V

4. each channel module can be set high or low triggered by jumper

5. fault-tolerant design, even if the control line is broken, the relay will not operate

6. power indicator (green), 2 relay state indicator (red)

7. interface design user-friendly, all interfaces are available through the wiring terminal direct connection leads, very convenient

Module Port:

1. DC+: DC power supply positive

2. DC-: DC power supply negative

3. IN1: Channel 1 signal trigger terminal

4. IN2: Channel 2 signal trigger terminal

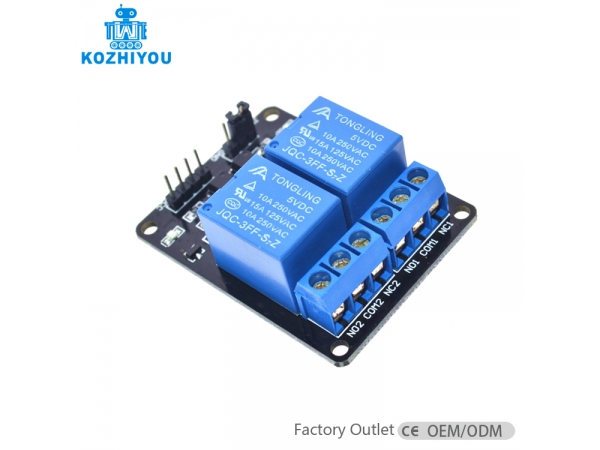

Relay Output:

1. NC1: Channel 1 relay normally closed pin.

2. COM1: Channel 1 relay common pin.

3. NO1: Channel 1 relay normally opened pin.

4. NC2: Channel 2 relay normally closed pin.

5. COM2: Channel 2 relay common pin.

6. NO2: Channel 2 relay normally opened pin.

High And Low Level Trigger Option:

1. S1: It is option switch for channel 1 relay.

2. S2: It is option switch for channel 2 relay.
