5. This voltmeter is applicable to almost all electric vehicles, with high precision, stability and reliability
Measurement range: red dc5-120v, green dc5-120v, blue dc5-120v
Power supply scope: no additional power supply is required, and the measured voltage is directly used as the power supply, the scope is the same as above
Height limit input: dc132v. Note: if the input voltage is higher than 132v, permanent damage may occur
Allowable error: ± 1%
Input impedance: > 100k Ω
Working current: Red < 23ma green < 18ma blue 13mA refresh speed: about 300ms once
Display mode: three digit "0.56" led nixie tube
Display color: red, green, blue
Lead length: 20cm

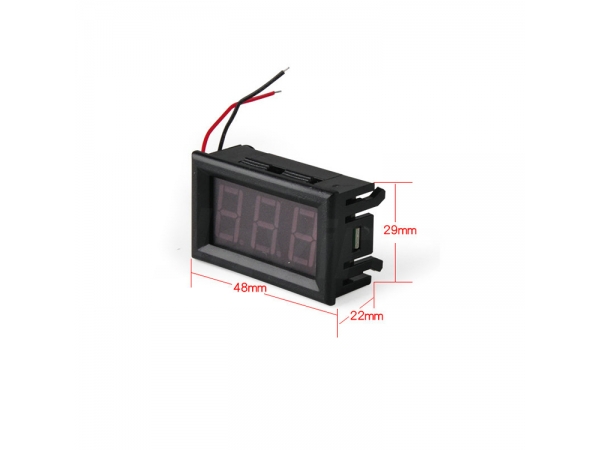

Boundary dimension: 48 * 29 * 22mm (length * width * thickness)
Opening size: 46 * 27mm
Working temperature: - 20 ° C ~ 65 ℃
