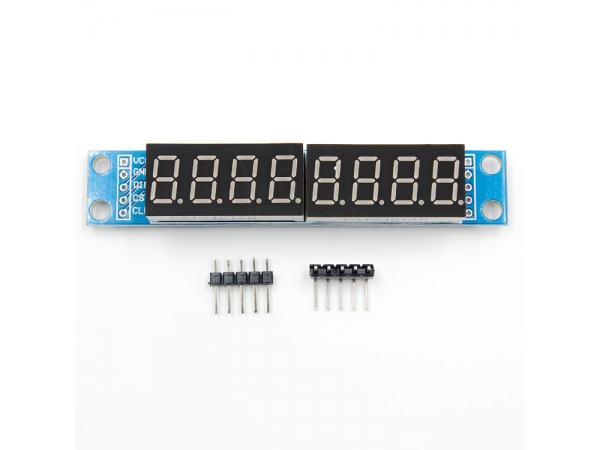

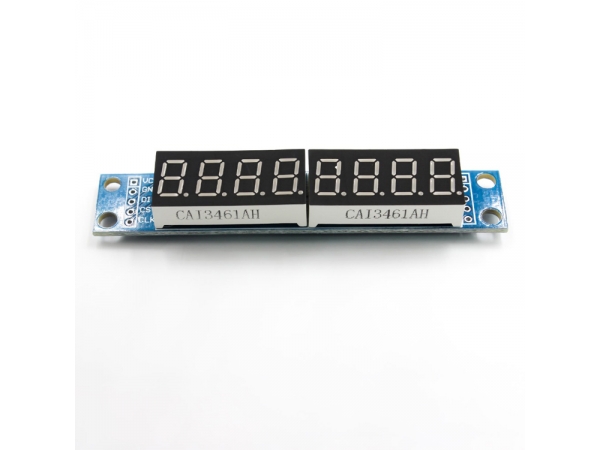

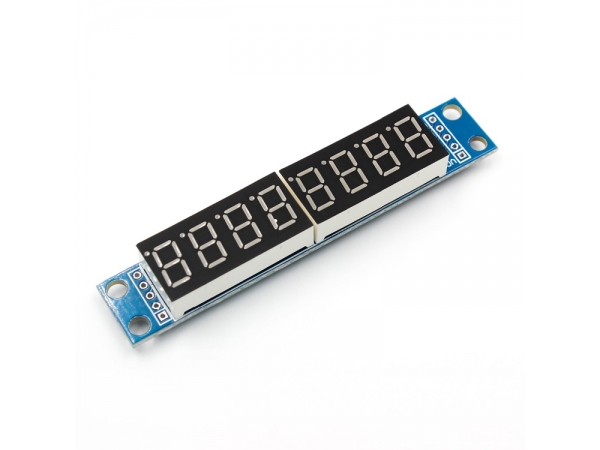

MAX7219 LED Dot Matrix 8 Digit Digital Tube Display Control Module 3.3V 5V Microcontroller Serial Driver 7-segment

MAX7219 LED Dot Matrix 8 Digit Digital Tube Display Control Module 3.3V 5V Microcontroller Serial Driver 7-segment
Features:
100% Brand new and high quality
MAX7219 digital display control module
This module is compatible with 5V and 3.3V microcontrollers.
You you can use it for Arduino

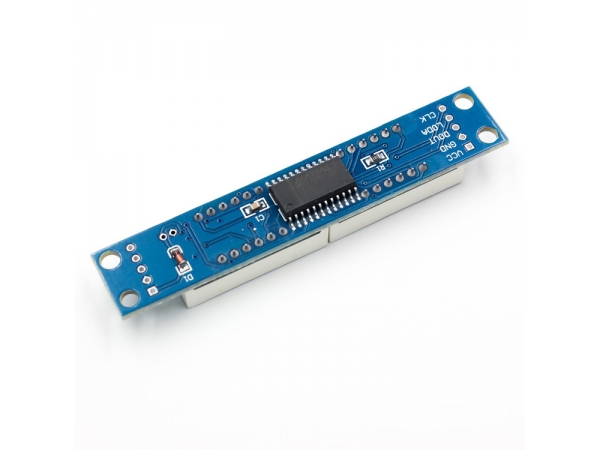

MAX7219 is an integrated serial input / output common-cathode display driver,
which connects your microprocessor to a 7-segment digital LED display with 8 digits.
Only three IO ports are used to drive the eight digit display.
MAX7219 supports flicker free displays as well as cascading displays.
  • MAX7219 LED Dot Matrix 8 Digit Digital Tube Display Control Module 3.3V 5V Microcontroller Serial Driver 7-segment
    Features:
    100% Brand new and high quality
    MAX7219 digital display control module
    This module is compatible with 5V and 3.3V microcontrollers.
    You you can use it for Arduino
    MAX7219 is an integrated serial input / output common-cathode display driver,
    which connects your microprocessor to a 7-segment digital LED display with 8 digits.
    Only three IO ports are used to drive the eight digit display.
    MAX7219 supports flicker free displays as well as cascading displays.
    Wiring instructions(for example, it can connect any IO port,
    modified the Port Definition in the program):
    VCC: 5V
    GND: GND
    DIN: P00
    CS: P01
    CLK: P02
    Note:
    VCC and GND should not be connected reversed, so as not to burn the chip
    Specifications:
    Material: PCB + Electronic Components
    Power: 5V

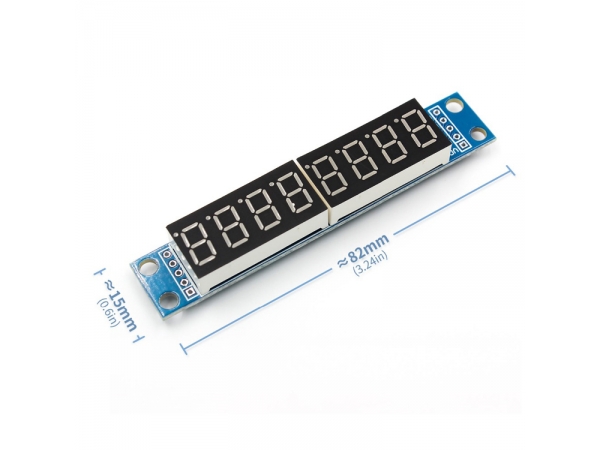

    Size: 82*15*12mm(L*W*H)
    Shell Color: Blue & black
    Net Weight:13g
