Electronic Components

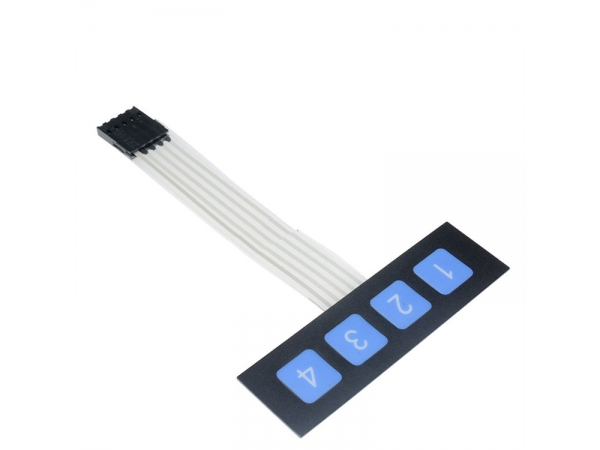

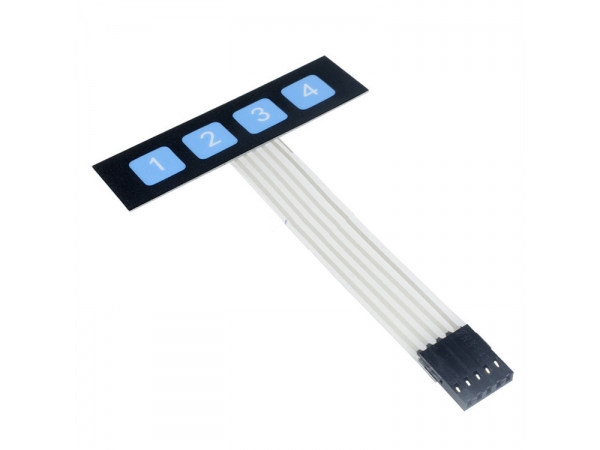

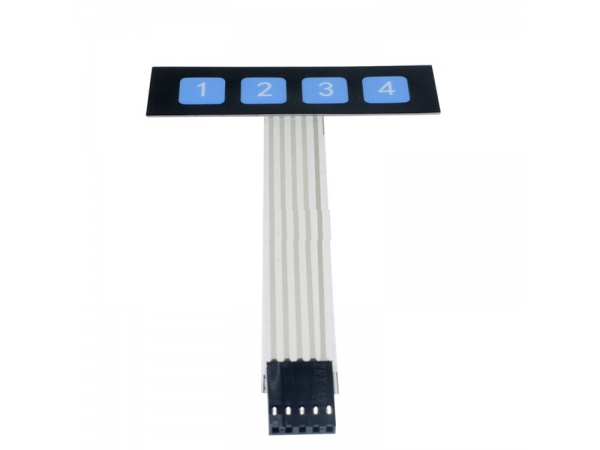

1*4 Matrix Array 4 Key Membrane Switch Keypad Keyboard 1x4 Keys

Specifications:
Connector: Dupont 9 pins, 0.1" (2.54mm) Pitch

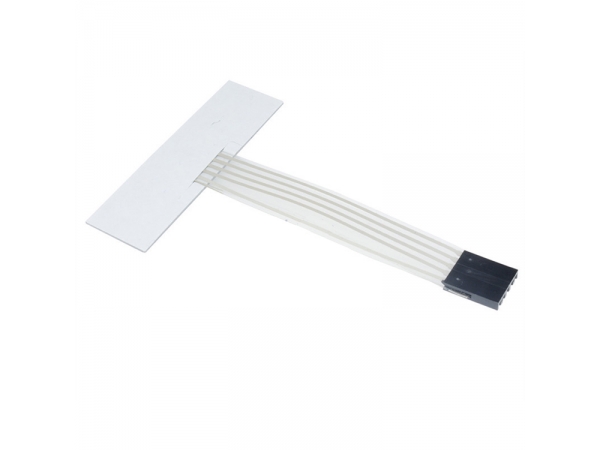

Mount Style: Self-Adherence
Circuit Rating: 35VDC, 100mA  (Max. )
Insulation Spec.: 100M Ohm, 100V
Dielectric Withstand: 250VRms (60Hz, 1min)
Contact Bounce: <=5ms
Life Expectancy: 1 million closures
Operation Temperature: -20 to +40 degrees

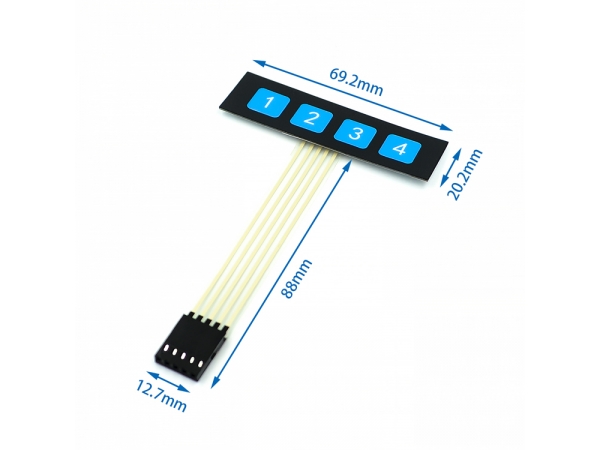

Product size: 8.7*6.9*2cm/3.43*2.72*0.79inch
No Retail Packages
Quantity: 1Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1 * Membrane Switch Keypad
  • Specifications:
    Connector: Dupont 9 pins, 0.1" (2.54mm) Pitch
    Mount Style: Self-Adherence
    Circuit Rating: 35VDC, 100mA  (Max. )
    Insulation Spec.: 100M Ohm, 100V
    Dielectric Withstand: 250VRms (60Hz, 1min)
    Contact Bounce: <=5ms
    Life Expectancy: 1 million closures
    Operation Temperature: -20 to +40 degrees
    Product size: 8.7*6.9*2cm/3.43*2.72*0.79inch
    No Retail Packages
    Quantity: 1Pc
    Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
    Package includes:
    1 * Membrane Switch Keypad
