Condition:Brand new and high quality Model: SCT013 Non-invasive current transformer;Meet UL94-V0 flame retardant properties Two form of output current, voltage (voltage output built-in the sampling resistor) Non-linearity +/-3%(10%-120% rated input current) Condition:Brand new and high quality

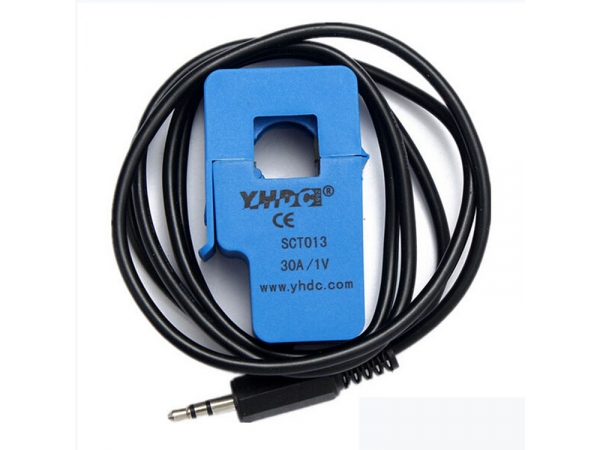

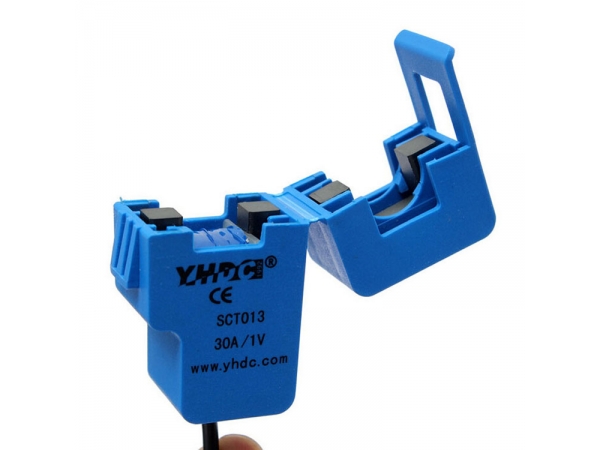

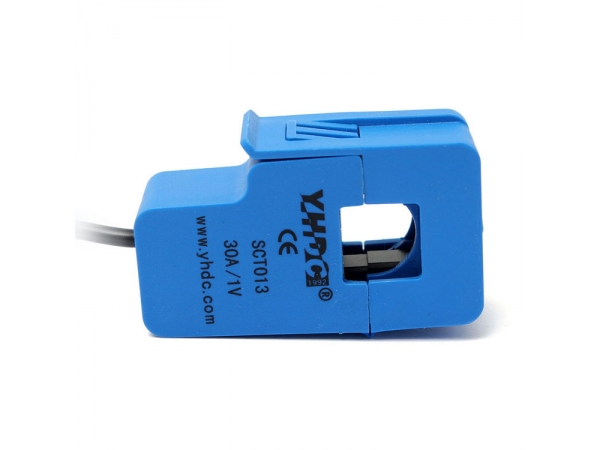

Model: SCT013

Non-invasive current transformer;Meet UL94-V0 flame retardant properties

Two form of output current, voltage (voltage output built-in the sampling resistor)

Non-linearity +/-3%(10%-120% rated input current)

Reference project: Open Energy Monitor

Core Material: Ferrite

Dielectric Strength:6000V AC/1min

Input Current:0A-100A

Anti-flaming rate:UL94-V0

Mechanical strength: opening and closing times, no less than 1000 times (20 Celsius)

Opening Size: Approx. 0.51 x 0.51inch / 13 x 13mm

Dielectric Strength:6000V AC/1min

Working Temperature:-25-70 Celsius

Cable Length: Approx. 41.37 inch / 105cm

Application:

Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection

Package Include:1 x Split Core Current Transformer SCT013

Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
