Electronic Components

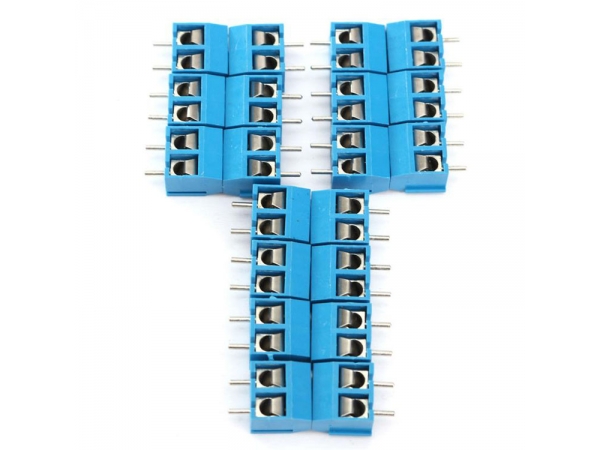

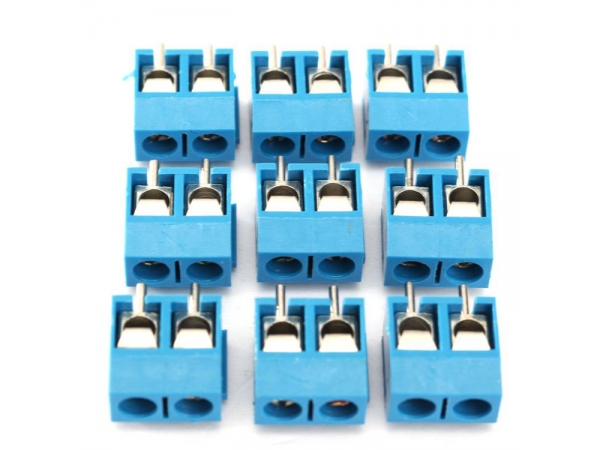

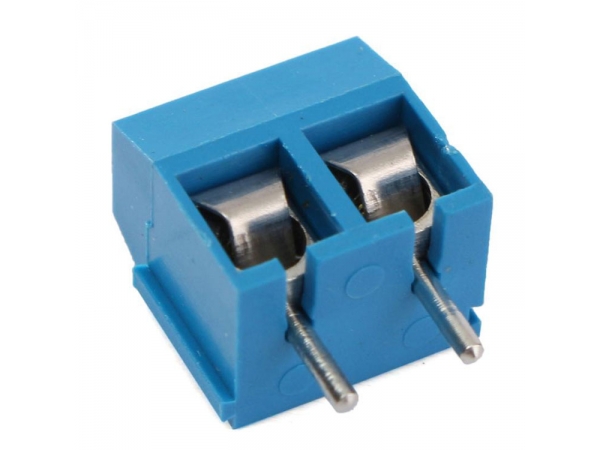

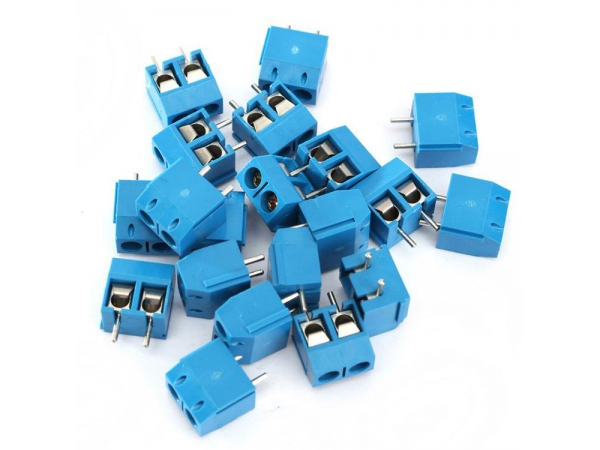

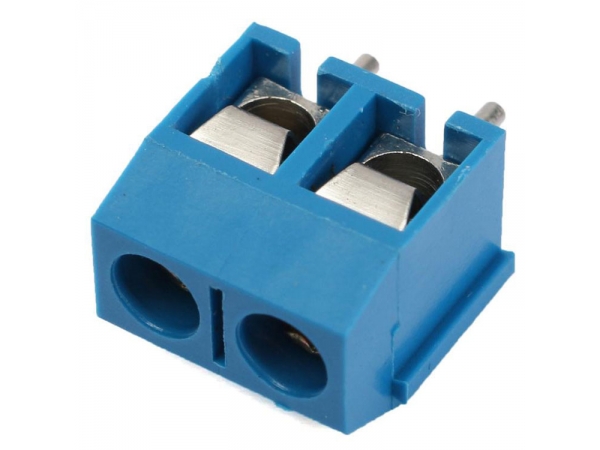

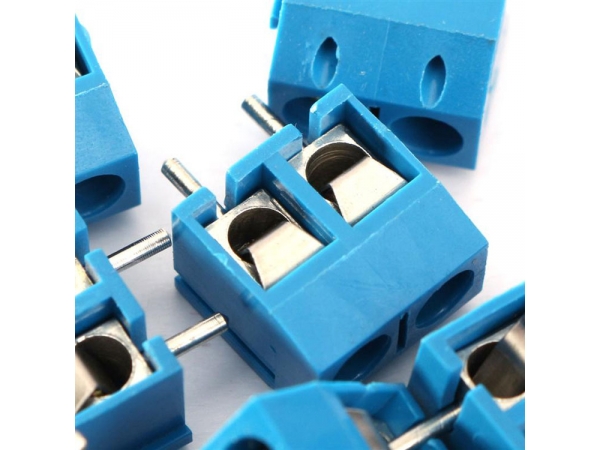

2 Pin Plug-in Screw Terminal Block Connector 5.08mm Pitch Connectors Terminals Blocks

Features
1.Electrical Properties:
Rated voltage: 300V
Rated current: 16A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding voltage: AC1500V/1Min
2.Mechanical Properties:
Temp. Range:-30℃~+120℃
Max Soldering: +250℃ for 5 Sec
Torque: 0.5Nm
Specifications
1.Material: Screws: M2.5 steel Zinc plated
Contact: phosphor bronze Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PBT, UL94V-0
2.Pitch: 5.08mm Poles: 2P
3.Color: Blue
  • Features
    1.Electrical Properties:
    Rated voltage: 300V
    Rated current: 16A
    Contact resistance: 20mΩ
    Insulation resistance: 5000MΩ/1000V
    Withstanding voltage: AC1500V/1Min
    2.Mechanical Properties:
    Temp. Range:-30℃~+120℃
    Max Soldering: +250℃ for 5 Sec
    Torque: 0.5Nm
    Specifications
    1.Material: Screws: M2.5 steel Zinc plated
    Contact: phosphor bronze Ni plated or stainless steel
    Pin header: Brass, Tin plated
    Housing: PBT, UL94V-0
    2.Pitch: 5.08mm Poles: 2P
    3.Color: Blue
  • Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
