Electronic Components

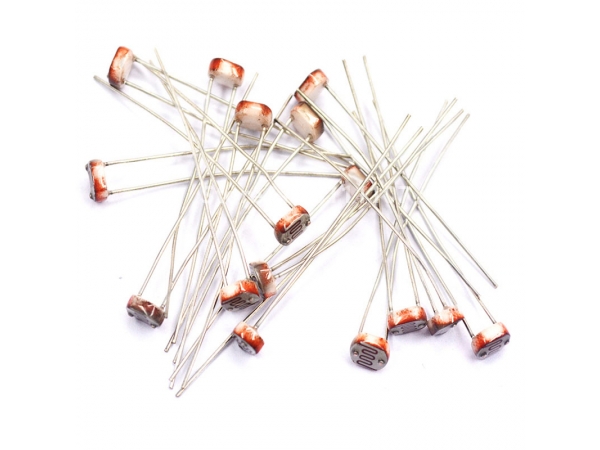

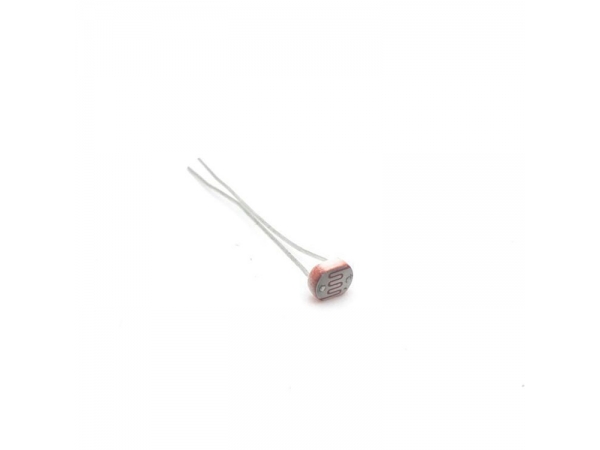

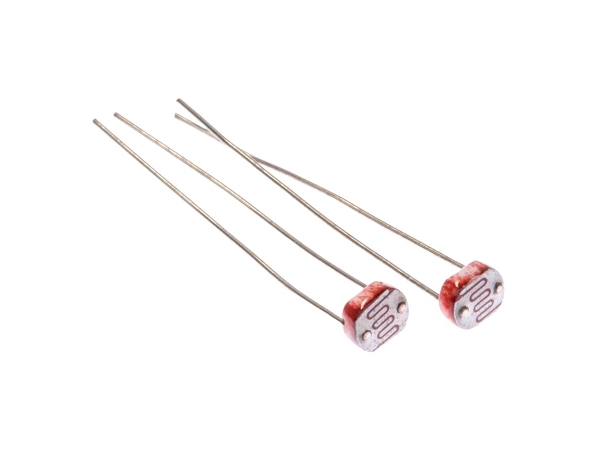

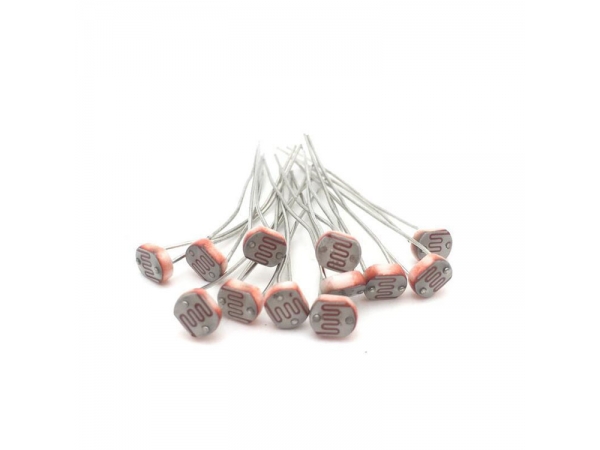

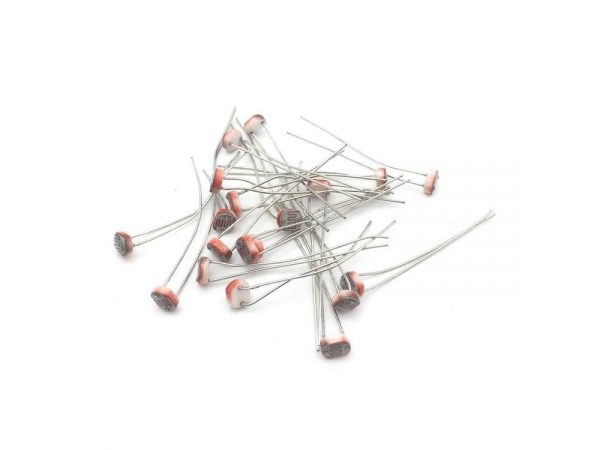

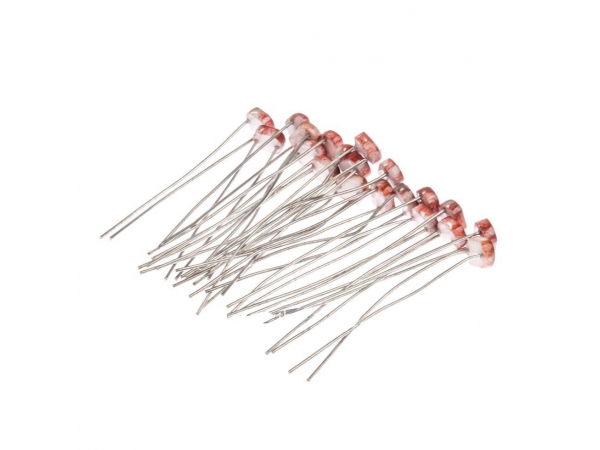

LDR Light Dependent Photo Resistors Sensor 5506 5516 5528 5537-1 5537-2 5539 5549 GL5528 Cds Photoresistor Resistance

Product Description:

 Feature:
 Model: GL5516
 Maximum Voltage (V-dc): 150V
 Maximum Power Consumption (mW): 100W
 Temperature (°C): -30 - +70
 Spectrum Peak Value (nm): 540 OD
 The limit test parameters:
 Bright Resistance (10Lux) (KΩ): < 45
 Dark Resistance (MΩ): > 200
 Application parameters reference value:
 Light resistance: < 8 k
 Dark resistance: > 20 megohm
 100¦Ë10: 0.6
 Response Time (ms): Up: 20/ Down: 30
 Light Resistance Characteristic: 3
 The length of the pins: > 2.5 CM/0.98"
 Material: Carbon
 Performance: General
 Shape: cylindrical
 Applications: burglar alarm circuit
 Size:5 x 3mm/0.2 x 0.12"

 Applications:Burglar alarm circuit optoelectronic circuits controlled electronic toys security infrared light board,Nightlight light control switches, etc.
  • Product Description:

     Feature:
     Model: GL5516
     Maximum Voltage (V-dc): 150V
     Maximum Power Consumption (mW): 100W
     Temperature (°C): -30 - +70
     Spectrum Peak Value (nm): 540 OD
     The limit test parameters:
     Bright Resistance (10Lux) (KΩ): < 45
     Dark Resistance (MΩ): > 200
     Application parameters reference value:
     Light resistance: < 8 k
     Dark resistance: > 20 megohm
     100¦Ë10: 0.6
     Response Time (ms): Up: 20/ Down: 30
     Light Resistance Characteristic: 3
     The length of the pins: > 2.5 CM/0.98"
     Material: Carbon
     Performance: General
     Shape: cylindrical
     Applications: burglar alarm circuit
     Size:5 x 3mm/0.2 x 0.12"

     Applications:Burglar alarm circuit optoelectronic circuits controlled electronic toys security infrared light board,Nightlight light control switches, etc.
