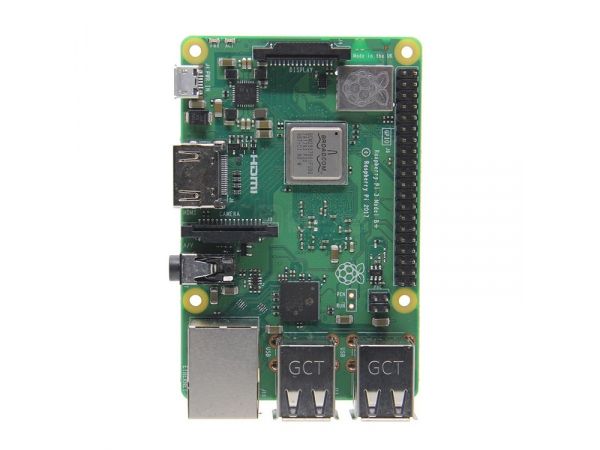

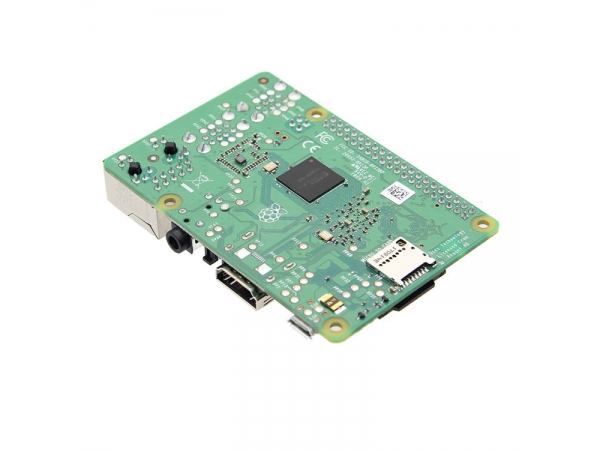

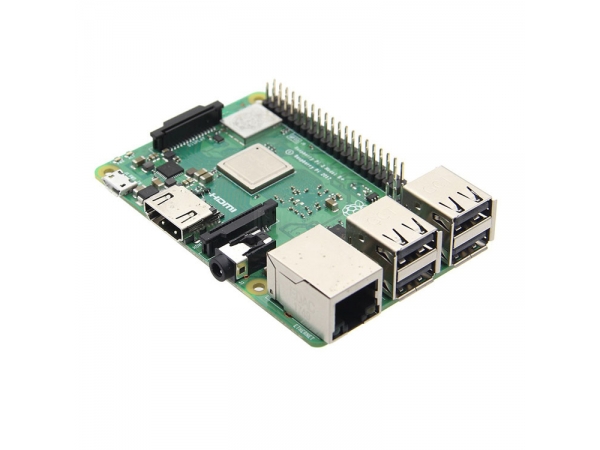

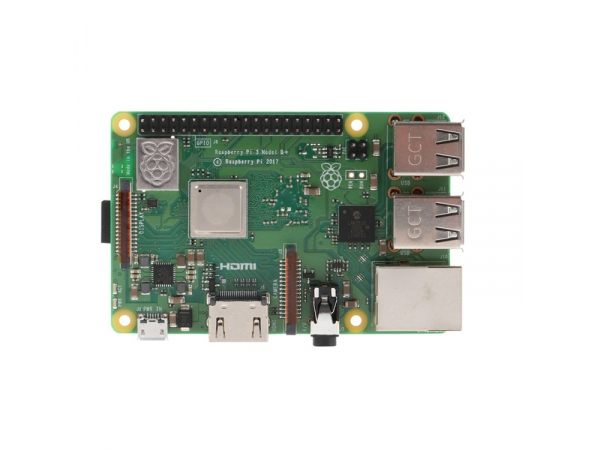

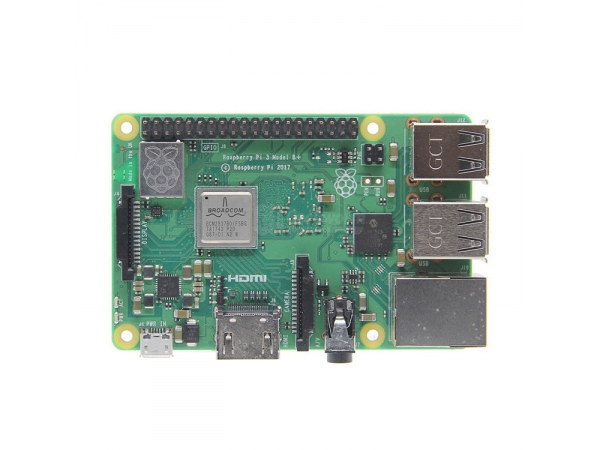

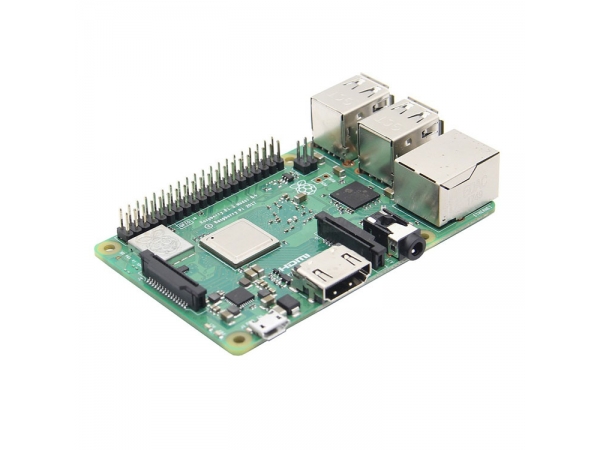

Original Raspberry Pi 3 Model B+ RPI 3 B plus with 1GB BCM2837B0 1.4GHz ARM Cortex-A53 Support WiFi 2.4GHz and Bluetooth 4.2

Built on the latest Broadcom 2837 ARMv8 64 bit processor, Raspberry Pi 3 Model B+ is faster and more powerful than its predecessors. It has improved power management to support more powerful external USB devices and now comes with built-in wireless and Bluetooth connectivity. To take full advantage of the improved power management on the Raspberry Pi 3 and provide support for even more powerful devices on the USB ports, a 2.5A adapter is required.

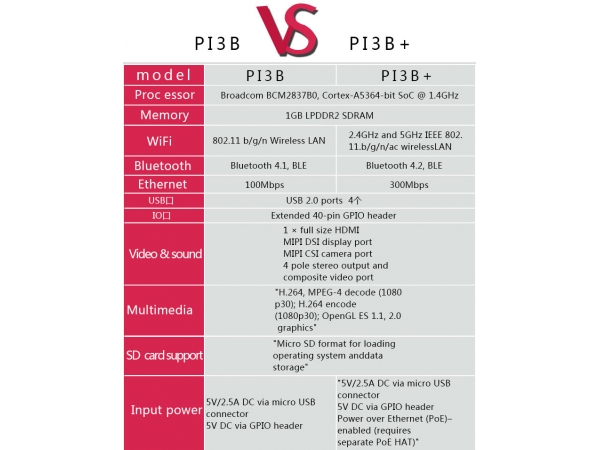

Technical Specifications:

- Broadcom BCM2837BO 64 bit ARMv8 QUAD Core A53 64bit Processor powered Single Board Computer run at 1.4GHz

- 1GB RAM - BCM43143 WiFi on board

- Bluetooth Low Energy (BLE) on board

- 40 pin extended GPIO - 4 x USB2 ports

- 4 pole Stereo output and Composite video port

- Full size HDMI

- CSI camera port for connecting the Raspberry

Pi camera - DSI display port for connecting the Raspberry

Pi touch screen display - MicroSD port for loading your operating system and storing data

- Upgraded switched Micro USB power source (now supports up to 2.5 Amps.)
