RASPBERRY-PI RASPBERRYPI-SENSEHAT Raspberry Pi Sense HAT with Orientation, Pressure, Humidity and Temperature Sensors

Item Description:

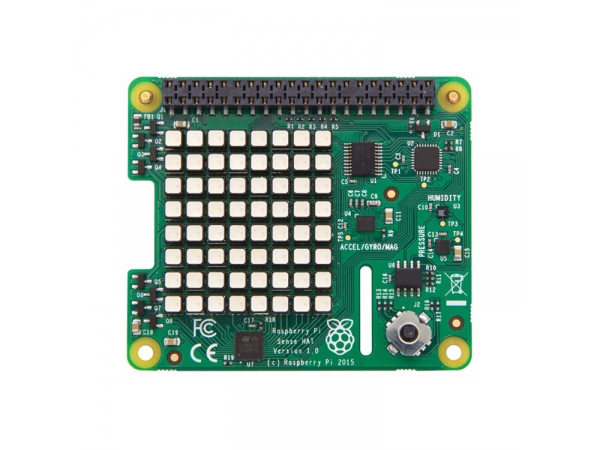

The Raspberry Pi Sense HAT is attached on top of the Raspberry Pi via the 40 GPIO pins. The Sense HAT has several integrated circuit based sensors that can be used for many different types of experiments, applications, and even games.

Gyroscope - angular rate sensor: ±245/500/2000dps

Accelerometer - Linear acceleration sensor: ±-2/4/8/16 g

Magnetometer - Magnetic Sensor: ± 4/8/12/16 gauss

Barometer: 260 - 1260 hPa absolute range

Temperature sensor: to ± 2 degC in the 0-65 degC

Relative Humidity sensor

8x8 LED matrix display

Small 5 button joystick

Applications:

Consumer Electronics; Embedded Design & Development; Hobby & Education; Sensing & Instrumentation

Specification:

Core Architecture: AVR

Features: 8×8 LED Matrix Display, Accelero/Gyro/Magneto/Air Pressure/Temp/Humidity I2C Sensors, Teeny Joystick

For Use With: Raspberry Pi Single Board Computers

Kit Contents: Add-on Board ATtiny88

SVHC: To Be Advised

Silicon Core Number: ATtiny88

Silicon Family Name: tinyAVR

Silicon Manufacturer: Atmel
