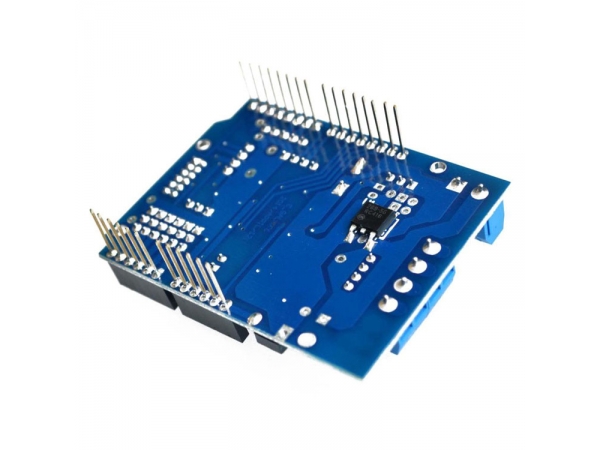

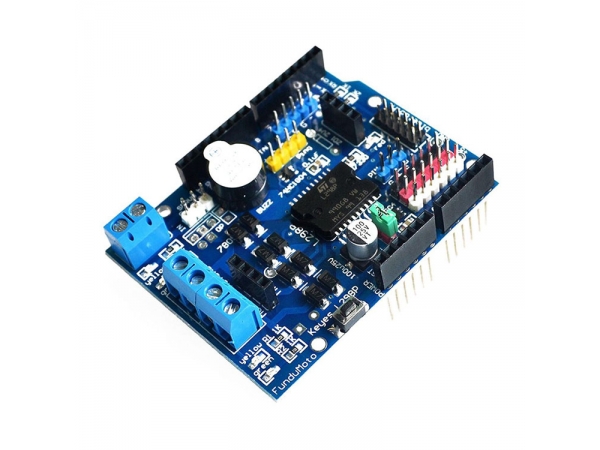

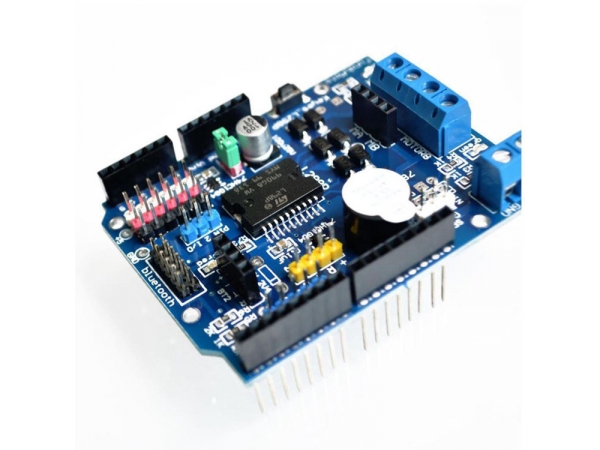

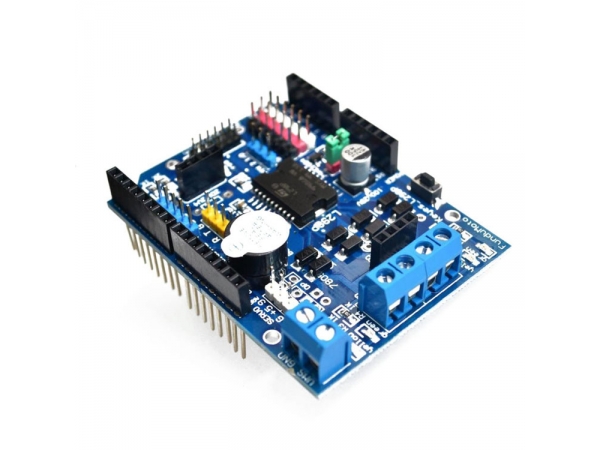

Adopt dedicated high-power motor driver chip L298P which can directly drive two DC motors with drive current up to 2A

Use eight high-speed Schottky diodes at motor output as protection

Stack design can be directly plugged into the Arduino, easier to use

The L298P shield DC motor driver has PWM speed control mode

Technical Specifications:

logical part of the input voltage VD: 5V

driven part of the input voltage VS: VIN Input 6.5 ~ 12V, PWRIN 4.8 ~ 35V input

logical part of the work current Iss: Less than 36mA

driven part of the operating current Io: Less than 2A

maximum power dissipation: 25W (T = 75 Celsius)

control signal input level: High 2.3V low -0.3V

Working temperature: -25 + 130 Celsius

hardware interface: 5.0mm pitch terminal

belt clip and can be controlled via front row access signal

Drive Type: Dual power H-bridge driver

Pin occupancy: D4 ~ D7 direct drive motor

supports PWM / PLL mode motor speed control

Size: 68 * 53mm

Material: metal

Package Include:

1 x Motor drive module
