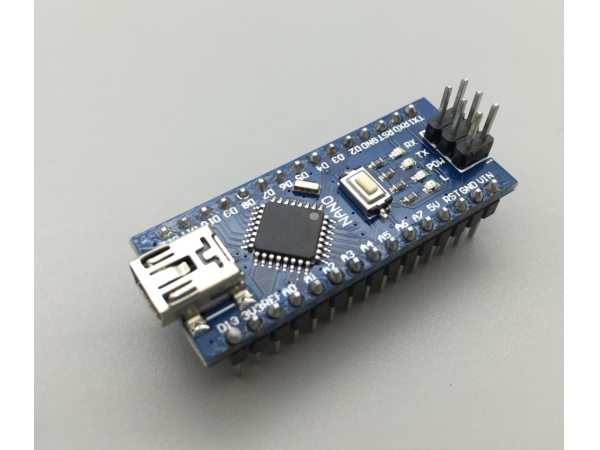

Description:

The Funduino Nano V3 development board is with the open original design schematics, free software interface, and also according to the needs and modifies the download process is simple and convenient. the development of the user interface and the environment is very simple, easy to understand, very suitable for beginners to learn.





Specification:

Name Nano V3.0 328P CH340G 5V 16M Micro-controller Board with USB cable

Controller CH340G

Input Voltage (recommended) 7-12V

Operating voltage(logic level) 5V

Maximum input voltage limits 6V - 20V

DC Current per I/O Pin 40 mA

Digital IO pins 14 (of which 6 provide PWM output)

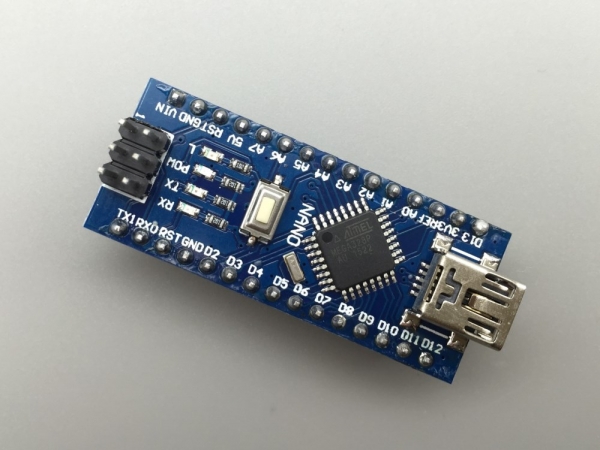

14DIGITAL Input/output ports TX,RX,D2 ~ D13

6 PWM ports D3, D5, D6, D9, D10, D11

Analog input pins 8

SRAM 2 KB

Clock Speed 16 MHz

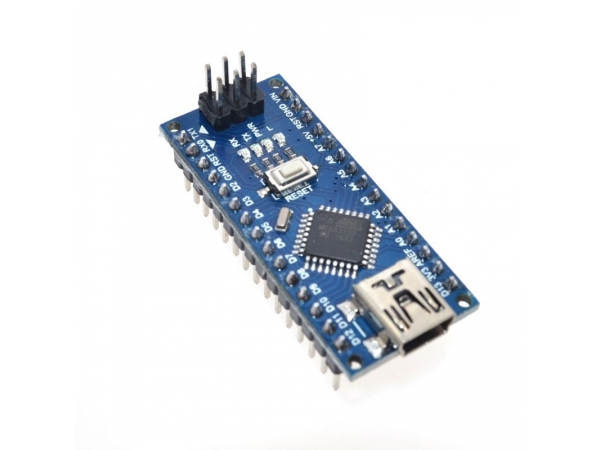

1 pair of TTL level serial transceiver ports RX / TX

Board Weight 5g

Cable Weight 25g

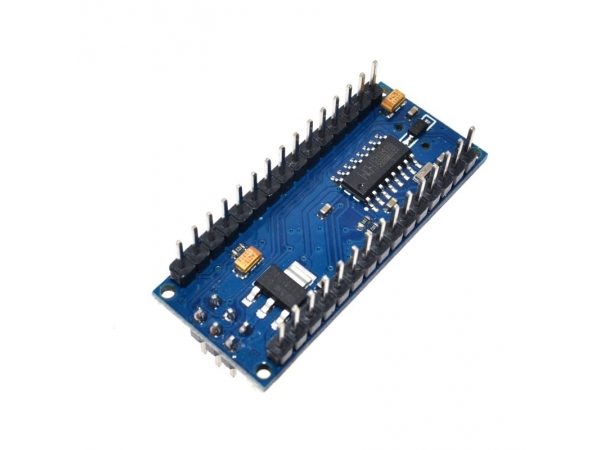

Features CH340G USB bus converter chip replaces FT232RL

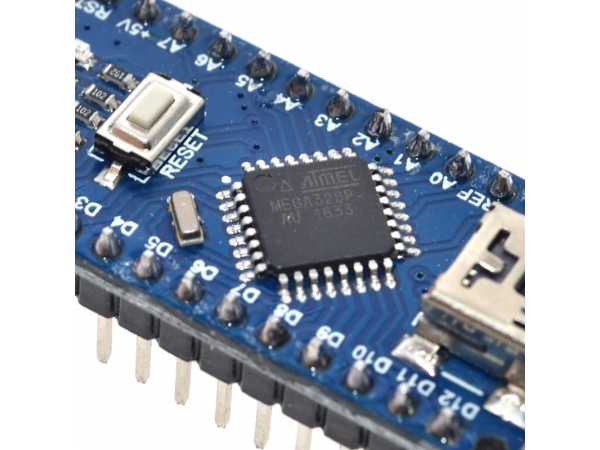

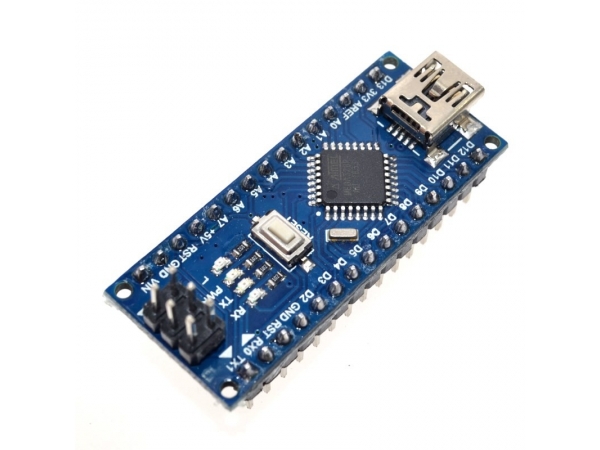

Uses Atmel 328P-AU MCU with bootloader installed

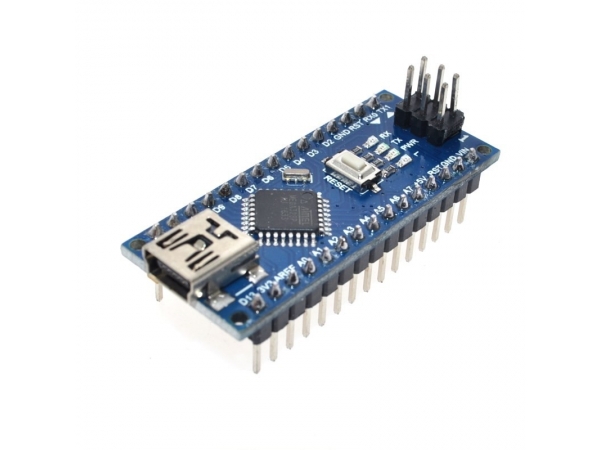

Support USB download and Power over Mini-B Mini USB connector

Supports ISP download

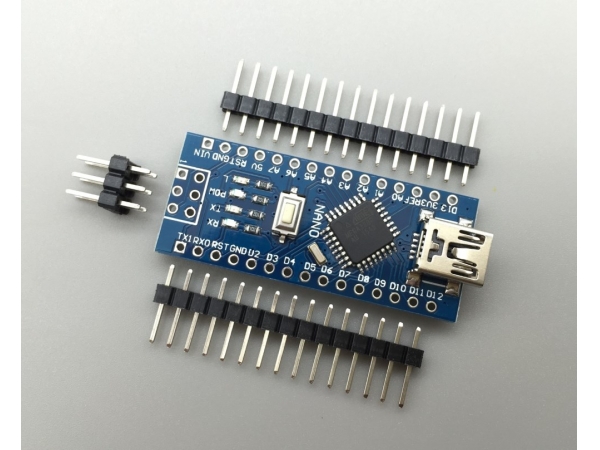

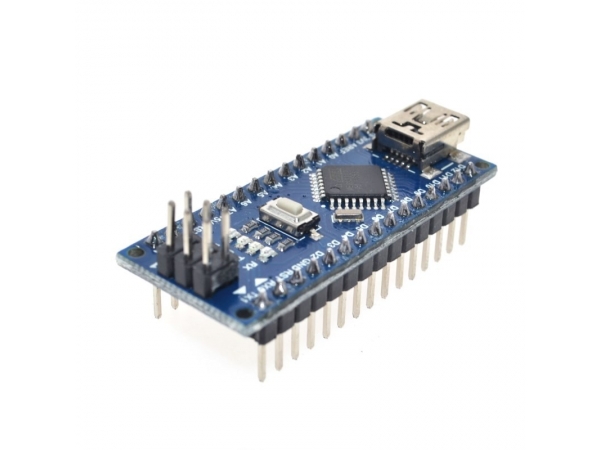

Supplied with connector pins (headers), not soldered to the board for user flexibility

Available With It can be powered via the Mini-B USB connection, a 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
