Describe:

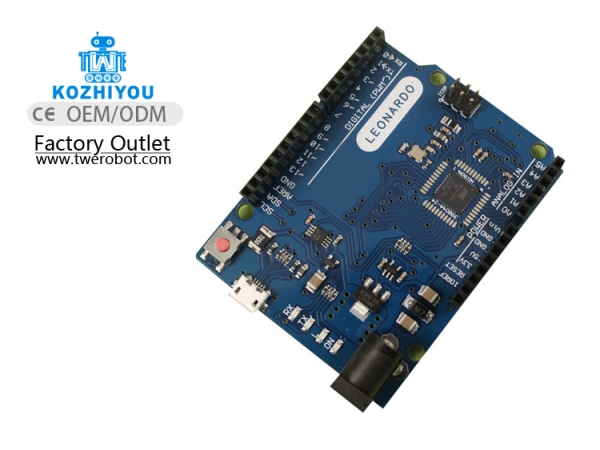

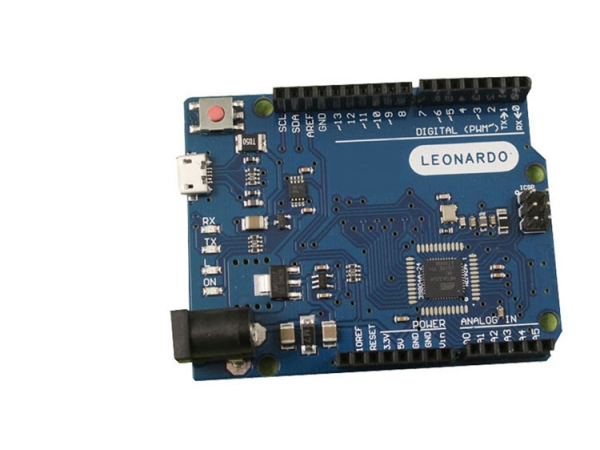

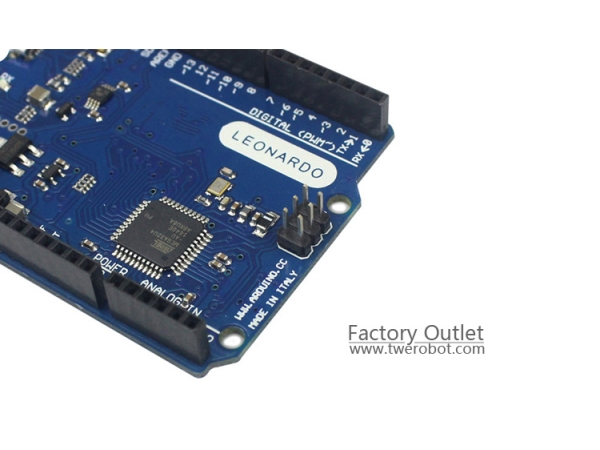

The Leonardo Board is a microcontroller board based on the ATmega32u4 for Arduin0. It has 20 digital input/output pins (ofwhich 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a powerjack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
Specification:
It‘s a 100% Ardu pro micro Compatible Board.
Chip: ATmega32u4
Board Mode: LEDNARDO R3
Operating frequency: 16MHz
Working voltage: 5V
Input voltage: 7-12V
Digital IO port: 20
PWM channel: 7
Analog input: 12
Maximum current of 5V digital/analog port: 40mA
Maximum current of 3.3 V digital/analog port: 50 mA
Flash Memory:32 KB (ATmega32u4) of which 4 KB used by bootloader
SRAM: 2.5 KB (ATmega32u4)
EEPROM: 1 KB (ATmega32u4)
Net tweight:18 g
Package weight:28 g
Color:As shown in the pictures

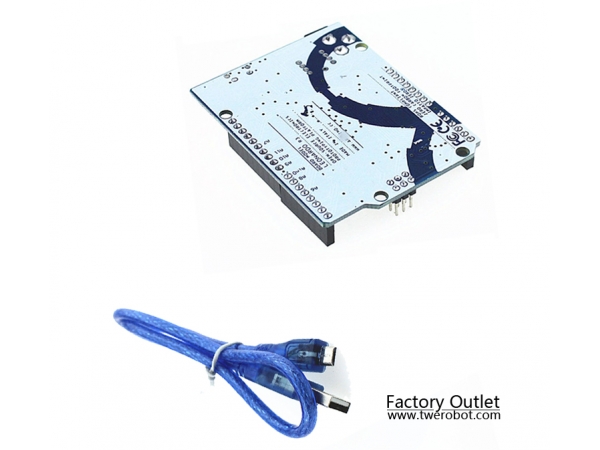

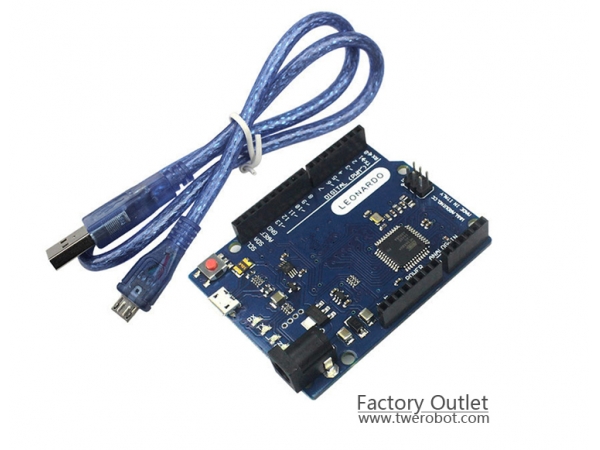

Package Content:
1 Ardu Module
1 USB Cable
