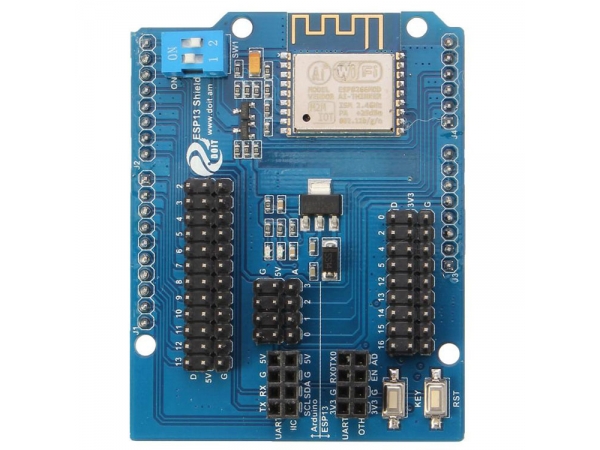

ESP8266 Web Server Serial Port WiFi Shield Expansion Board ESP-13 Compatible for Arduino UNO MEGA 2560 Smart robot car

ESP8266 Module

Model: ESP8266MOD

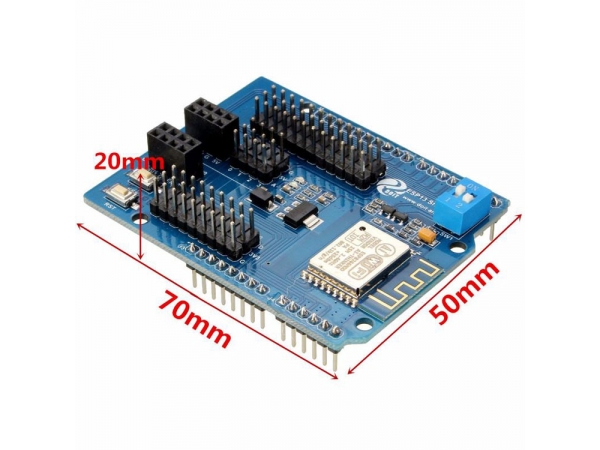

Size(L*W*H):70 x 50 x 20 mm

Serial Parity: None

Serial data bits:5/6/7/8bits

Serial port stop bits: 1/2 bit

Wireless transmission rate: 110-460800bps

WiFi current: Continuous transmission: ≈70mA (200mA MAX),

Standby: <200uA

The working temperature: -40 ℃ ~ + 125 ℃

Support for:Wireless 802.11 b/g/n standards

STA/AP two modes of operation

Standard TCP/UDP Server and Client

Serial port baud rate support:1200/2400/4800/9600/19200/38400/57600/74800/115200 bps

Features:

1.Built-in TCP / IP protocol stack, you can configure a socket.

2.Real serial WiFi, Ard uino program without any configuration.

3.Can be used as stand-alone expansion board Ard uino Uno use, pin all leads.

4.Based on WiFi Web Server configuration parameters and serial port parameters.

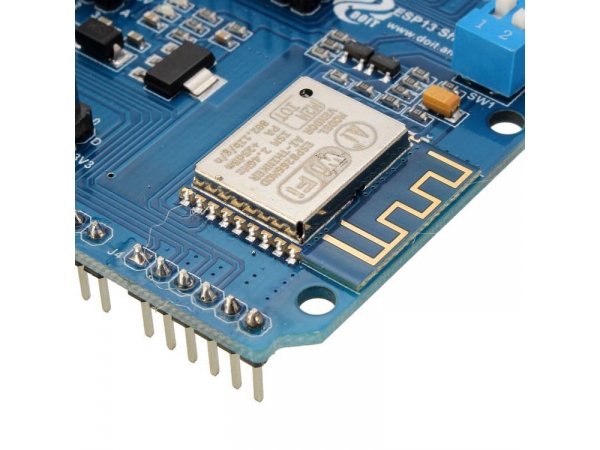

5.WiFi using industrial-grade chips ESP8266, modules for the ESP-13 with metal shield, anti-jamming.

6.Can be used as an independent ESP8266 development board, download the official AT commands firmware, NodeMCU open source firmware.

7.Standard pin-compatible Ard uino Uno, Mega2560 and other control board, Ardui no UNO connection with the use of a voltage converter chip, so 3.3V and 5V are compatible.

8.Serial port DIP switch with dual control, so the expansion board can be used alone as an Ardu ino Uno expansion boards, it can also be used as ESP8266 expansion board use.

Package Included:
