BBC Micro:bit

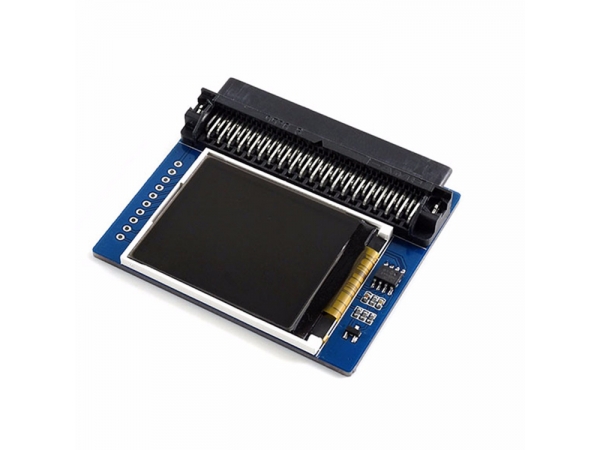

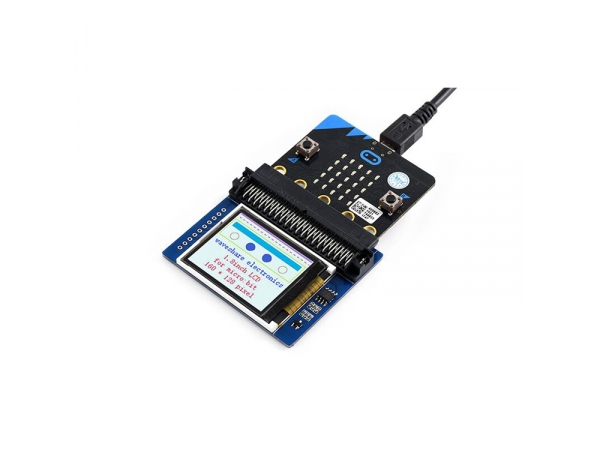

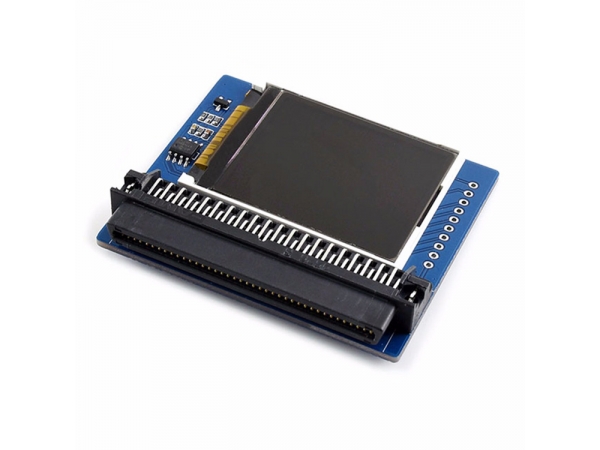

1.8inch Colorful LCD Display Screen Module 160x128 RGB 65K colors ST7735S Driver for BBC micro bit microbit

Description:
For micro:bit edge connector, directly pluggable
Embedded driver ST7735S, supports 65K colors
Onboard SRAM 23LC1024, used as display cache, no more out of memory
SPI interface, takes up only a few IO pins
Backlight adjustment via PWM
Reserved solder pads for control interface, make it easy to connect with (for) Arduino/Nucleo boards
Comes with development resources (for micro:bit graphical demo/python code/user manual, etc.)
Driver: ST7735S
Resolution: 160x128
Display color: RGB, 65K colors
Operating voltage: 3.3V
Dimension: 61mm x 51.5mm

Package Includes:
1 X For micro:bit 1.8inch Colorful Display Module

Note : For microbit development board is not included.
  • Description:
    For micro:bit edge connector, directly pluggable
    Embedded driver ST7735S, supports 65K colors
    Onboard SRAM 23LC1024, used as display cache, no more out of memory
    SPI interface, takes up only a few IO pins
    Backlight adjustment via PWM
    Reserved solder pads for control interface, make it easy to connect with (for) Arduino/Nucleo boards
    Comes with development resources (for micro:bit graphical demo/python code/user manual, etc.)
    Driver: ST7735S
    Resolution: 160x128
    Display color: RGB, 65K colors
    Operating voltage: 3.3V
    Dimension: 61mm x 51.5mm

    Package Includes:
    1 X For micro:bit 1.8inch Colorful Display Module

    Note : For microbit development board is not included.
