3.3V Mini Piano Module for BBC micro:bit microbit Touch Keys to Play Music, on board Capacitive Touch Controller TTP229, with 4x RGB LEDs, for kids education

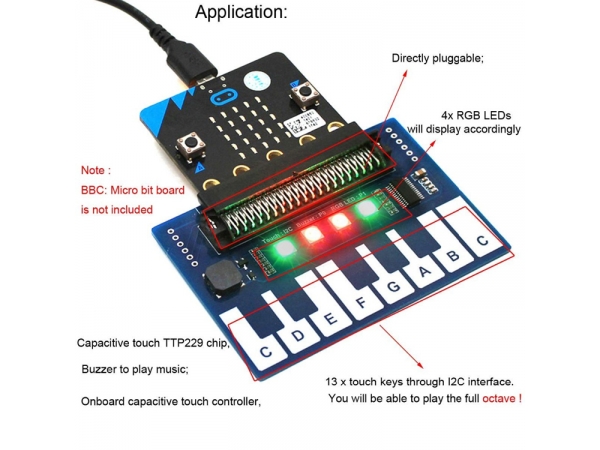

micro:bit edge connector, directly pluggable

Buzzer to play music

Onboard capacitive touch controller, 13x touch keys through I2C interface

4x RGB LEDs, controlled by only one signal pin

Breakout module control pins, micro:bit SPI pins, and some of the GPIO pins, easy expansion

Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)

Touch controller: TTP229

LED: WS2812B

LED color depth: 16777216 colors

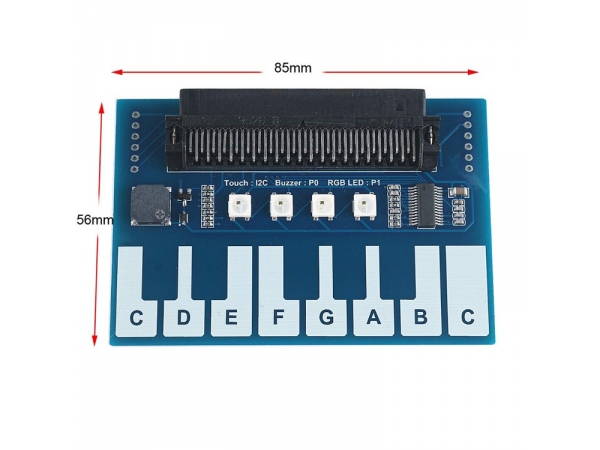

Dimension: 85mm x 56mm

Operating voltage: 3.3V

Package Includes:

1 X Mini Piano Module for BBC micro:bit

Note: (for ) micro:bit board is not included.

micro:bit edge connector, directly pluggable

Buzzer to play music

Onboard capacitive touch controller, 13x touch keys through I2C interface

4x RGB LEDs, controlled by only one signal pin

Breakout module control pins, micro:bit SPI pins, and some of the GPIO pins, easy expansion

Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)

Touch controller: TTP229

LED: WS2812B

LED color depth: 16777216 colors

Dimension: 85mm x 56mm

Operating voltage: 3.3V

Package Includes:

1 X Mini Piano Module for BBC micro:bit

Note: (for ) micro:bit board is not included.
